Product Summary

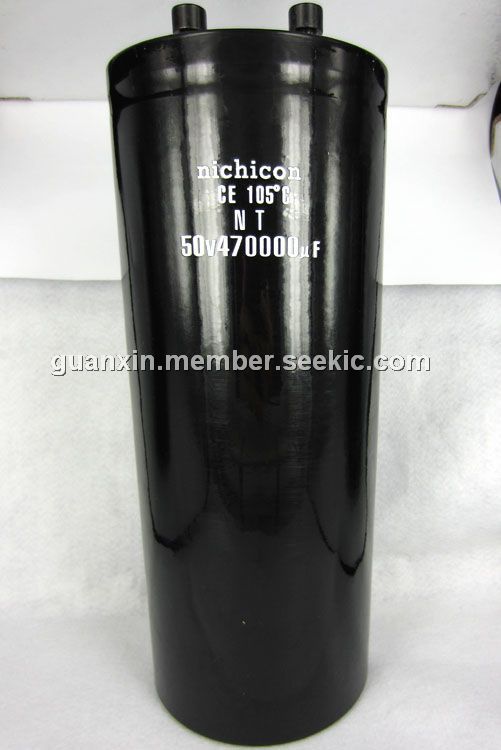

The LNT1H474MSE is an aluminum electrolytic capacitor.

Parametrics

LNT1H474MSE absolute maximum ratings: (1)Capacitance: 470000μF ; (2)Voltage Rating: 50V ; (3)Tolerance: ±20% ; (4)Lifetime @ Temperature: 2000 Hrs @ 105℃; (5)Operating Temperature: -40℃ to 105℃; (6)Features: General Purpose; (7) Ripple Current: 26.1A.

Features

LNT1H474MSE features: (1)Load life of 5,000 hours (2,000 hours for 10V to 250V,500V) application of rated ripple current at +105℃; (2)Extended voltage range from 10V up to 500V; (3)Extended range up to φ100×250L 2size; (4) Available for adapted to the RoHS directive (2002/95/EC).

Diagrams

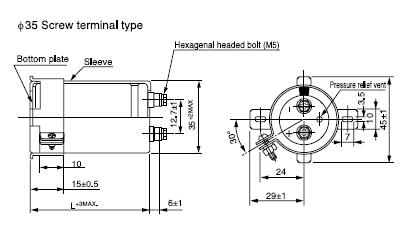

LNT1H474MSE dimmension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LNT1H474MSE
LNT1H474MSE
Nichicon
Aluminum Electrolytic Capacitors - Screw Terminal 50volts 470000uF 105c 100x250
Data Sheet
0-1: $499.79
Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
LNT1A333MSE
LNT1A333MSE
Nichicon
Aluminum Electrolytic Capacitors - Screw Terminal 10volts 33000uF 105c 35x80
Data Sheet
0-1: $23.99
1-250: $15.99
LNT1A473MSE
LNT1A473MSE
Nichicon
Aluminum Electrolytic Capacitors - Screw Terminal 10volts 47000uF 105c 35x100
Data Sheet
0-23: $27.98
23-250: $18.65
LNT1A474MSE
LNT1A474MSE
Nichicon
Aluminum Electrolytic Capacitors - Screw Terminal 10volts 470000uF 105c 90x140
Data Sheet
0-1: $154.94
LNT1H103MSE
LNT1H103MSE
Nichicon
Aluminum Electrolytic Capacitors - Screw Terminal 50volts 10000uF 35x80
Data Sheet
0-1: $16.90
1-25: $14.21
25-50: $12.62
50-100: $11.65
LNT1E333MSE
LNT1E333MSE
Nichicon
Aluminum Electrolytic Capacitors - Screw Terminal 25volts 33000uF 105c 35x100
Data Sheet
0-1: $22.88
1-250: $15.25
250-500: $13.87
LNT1C473MSE
LNT1C473MSE
Nichicon
Aluminum Electrolytic Capacitors - Screw Terminal 16volts 47000uF 105c 35x100
Data Sheet
0-1: $21.97
1-250: $14.65
250-500: $13.31
