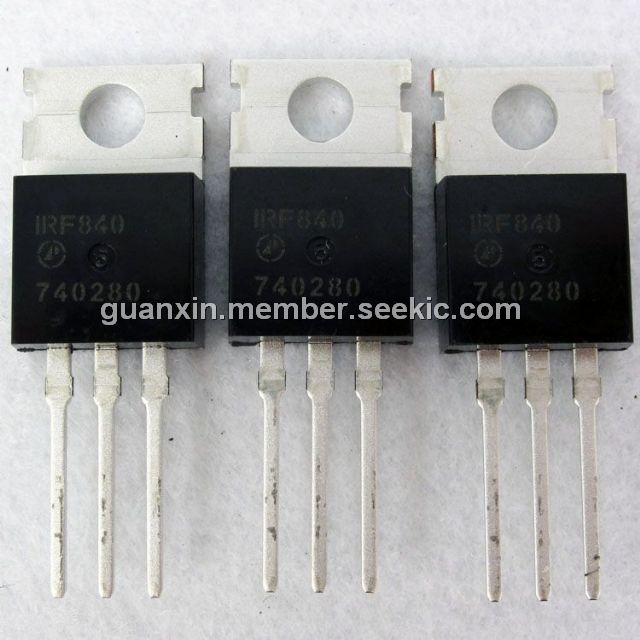

IRF840

IRF840, Power MOSFET, 500V, 8.0A, TO-220AB, 510mJ, 125W

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.27~0.49 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.27~0.49

PartNumber:: IRF840

Brand:: International Rectifier - IR | Pack: TO | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Rosy's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-04-13

From Other Seller

Part Number:IRF840
US $0.27 - 0.49
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
HEF4051BT

US $0.15 - 1.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The IRF840 is a power MOSFET. The IRF840 provides the designer with the best combination of fast switching, ruggedized device design, low on-resistance and cost-effectiveness. The TO-220 package of the IRF840 is universally preferred for all commercial-industrial applications at power dissipation levels to approximately 50 W. The low thermal resistance and low package cost of the TO-220 contribute to its wide acceptance throughout the industry.

Parametrics

IRF840 absolute maximum ratings: (1)Drain-Source Voltage: 500 V; (2)Gate-Source Voltage: ± 20 V; (3)Continuous Drain Current VGS at 10 V: 8.0 A at TC = 25 ℃, 5.1 A at TC = 100 ℃; (4)Pulsed Drain Current: 32A; (5)Linear Derating Factor: 1.0W/℃; (6)Single Pulse Avalanche Energy : 510mJ; (7)Repetitive Avalanche Current a: 8.0A; (8)Repetitive Avalanche Energy : 13mJ; (9)Maximum Power Dissipation at TC = 25 ℃: 125 W; (10)Peak Diode Recovery dV/dt: 3.5 V/ns; (11)Operating Junction and Storage Temperature Range: -55℃ to + 150℃; (12)Soldering Recommendations (Peak Temperature) for 10 s: 300℃.

Features

IRF840 features: (1) Dynamic dV/dt Rating; (2) Repetitive Avalanche Rated; (3) Fast Switching; (4) Ease of Paralleling; (5) Simple Drive Requirements; (6) Lead (Pb)-free Available.
