Product Summary

The TAJA105M025RNJ is a Solid Tantalum Chip Capacitor.

Parametrics

Absolute maximum ratings: (1)Capacitance Range: 0.1 μF to 1000 μF; (2)Capacitance Tolerance: ±10%; ±20%; (3)Rated Voltage (VR) ≤ +85℃: 2.5, 4, 6.3, 10, 16, 20, 25, 35, 50; (4)Category Voltage (VC) ≤ +125℃: 1.7, 2.7, 4 7, 10, 13, 17, 23, 33; (5)Surge Voltage (VS) ≤ +85℃: 3.3, 5.2, 8, 13, 20, 26, 32, 46, 65; (6)Surge Voltage (VS) ≤ +125℃: 2.2, 3.4, 5, 8, 13, 16, 20, 28, 40; (7)Temperature Range: -55℃ to +125℃.

Features

Features: (1)Generic SMT chip tantalum series; (2)CV range: 0.10-2200μF / 2.5-50V; (3)9 case sizes in low profile option available.

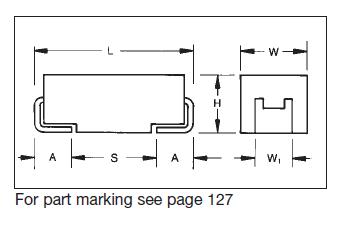

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity

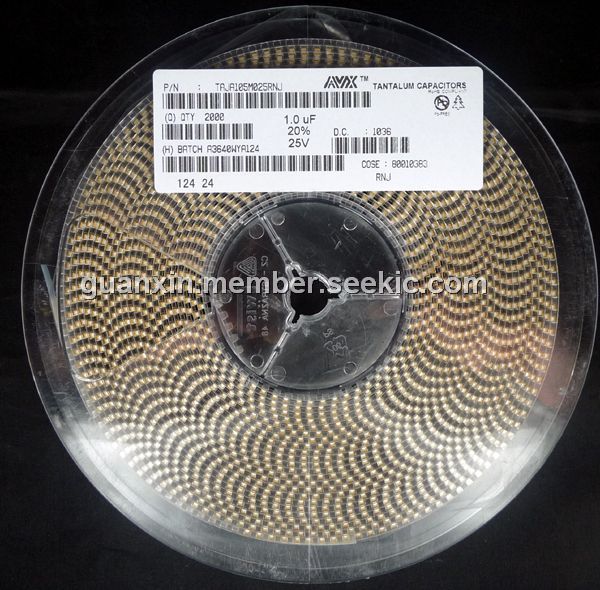

TAJA105M025RNJ
TAJA105M025RNJ

AVX

Tantalum Capacitors - Solid SMD 25volts 1uF 20%

Data Sheet

0-1: $0.22
1-100: $0.15
100-200: $0.12
200-500: $0.11
Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
TAJA104K035H
TAJA104K035H


CAP TANT 0.1UF 35V 10% 1206

Data Sheet

0-2000: $0.41
TAJA104K035HNJ
TAJA104K035HNJ

AVX

Tantalum Capacitors - Solid SMD 35volts 0.10uF 10%

Data Sheet

0-1: $0.54
1-100: $0.36
100-500: $0.27
500-1000: $0.25
1000-2000: $0.17
TAJA104K035RNJ
TAJA104K035RNJ

AVX

Tantalum Capacitors - Solid SMD 35volts 0.10uF 10%

Data Sheet

0-1: $0.47
1-100: $0.36
100-200: $0.30
200-500: $0.23
TAJA104K035SNJ
TAJA104K035SNJ


CAP TANT 0.1UF 35V 10% 1206

Data Sheet

0-8000: $0.16
TAJA104K035YNJ
TAJA104K035YNJ

AVX

Tantalum Capacitors - Solid SMD 35V 0.1uF 10%

Data Sheet

0-1350: $0.25
1350-2000: $0.17
2000-5000: $0.17
5000-10000: $0.16
TAJA104K050H
TAJA104K050H


CAP TANT 0.1UF 50V 10% 1206

Data Sheet

0-2000: $0.41
