Product Summary

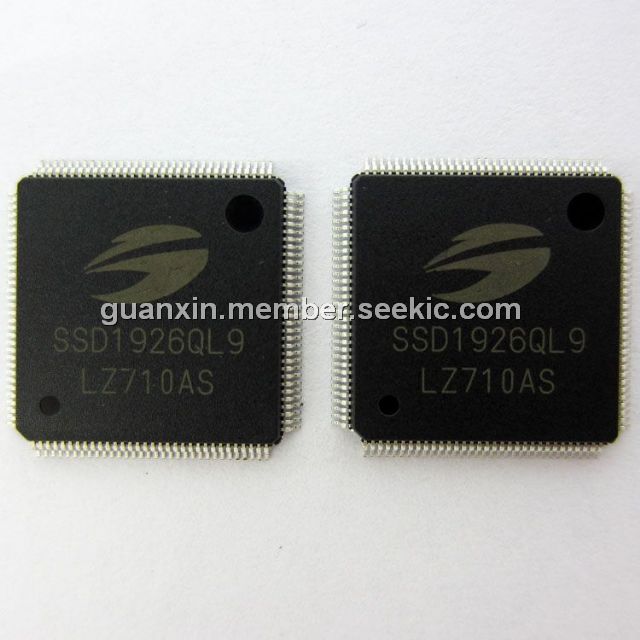

The SSD1926QL9 is an image processor designed for advanced car AV device with image capture and process features. The image files can be saved into SD/MMC card through SD interface. The JPEG file is retrieved back from SD/MMC card, decoded and displayed on LCD panel through LCD interface. This interface supports various kinds of LCD panel like STN, CSTN and TFT. With advanced power management design, SSD1926QL9 is suitable for low power consumption and advanced image applications etc. The SSD1926QL9 is available in LQFP package.
Parametrics
SSD1926QL9 absolute maximum ratings: (1)Supply Voltage: VSS-0.3V to 4.0V; (2)Input Voltage: VSS-0.3V to 5.0V; (3)Output Voltage: VSS-0.3V to IOVDD + 0.5V; (4)Storage Temperature: -65℃ to 150℃; (5)Solder Temperature/Time: 260℃ for 10 sec. max at lead.
Features

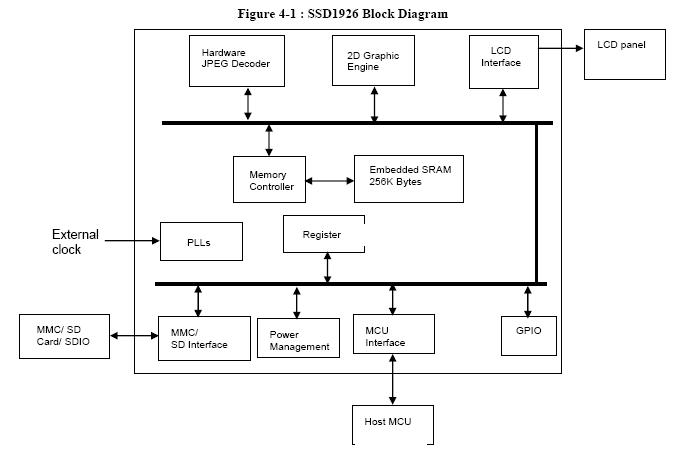

SSD1926QL9 features: (1)Hardware decoder to decode JPEG image with variable size up to 1280×1024; (2)2D Graphic Engine; (3)LCD Graphic Controller; (4)LCD Panel Interface; (5)Host MCU interface; (6)MMC/SD Interface; (7)I/O Interface: 13 GPIOs; (8)Miscellaneous: Embedded 256K bytes SRAM, Single clock input, Integrated PLL, Advanced power management to cut off the power for modules that are idle; (9)128-pin LQFP package.
