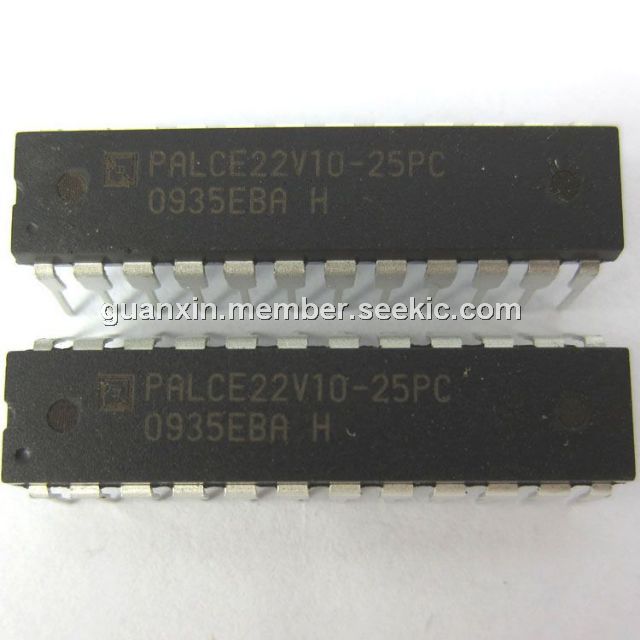

The PALCE22V10-25PC is a flash-erasable reprogrammable CMOS PAL Device.
Parametrics
PALCE22V10-25PC absolute maximum ratings: (1)Storage Temperature: –65℃ to +150℃; (2)Ambient Temperature with Power Applied: –55℃ to +125℃; (3)Supply Voltage to Ground Potential (Pin 24 to Pin 12):–0.5V to +7.0V; (4)DC Voltage Applied to Outputs in High-Z State:–0.5V to +7.0V; (5)DC Input Voltage:–0.5V to +7.0V; (6)Output Current into Outputs (LOW): 16mA; (7)DC Programming Voltage: 12.5V; (8)Latch-up Current:＞200mA; (9)Static Discharge Voltage (per MIL-STD-883, Method 3015):＞2001V.
Features
PALCE22V10-25PC features: (1) Low power: 90mA max. commercial (10ns), 130mA max. commercial (5ns); (2)CMOS Flash EPROM technology for electrical erasability and reprogrammability; (3)Variable product terms 2× (8 through 16) product terms; (4)User-programmable macrocell: Output polarity control, Individually selectable for registered or combinatorial; (5)operation; (6)Up to 22 input terms and 10 outputs; (7)DIP, LCC, and PLCC available: 5ns commercial version, 4ns tCO, 3ns tS, 5ns tPD; (8)181-MHz state machine: 10ns military and industrial versions, 7ns tCO, 6ns tS, 10ns tPD, 110-MHz state machine; (9)15ns commercial, industrial, and military versions; (10)25ns commercial, industrial, and military versions; (11)High reliability; (12)Proven Flash EPROM technology: 100% programming and functional testing.
