Product Summary

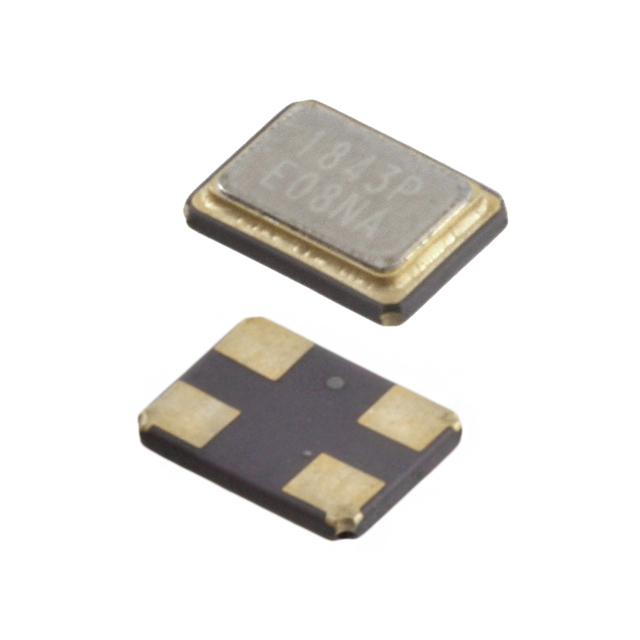

The FA-238 is a Crystal Oscillator.

Parametrics

FA-238 absolute maximum ratings: (1)Nominal frequency range: 16MHz to 60MHz; (2)Storage temperature Range: -40℃ to 125℃; (3)Operating temperature Range: -40℃ to 85℃; (4)Level of drive: 10μW to 100μW; (5)Load capacitance: 7pF to ∞ (Standard: 10pF).

Features

FA-238 features: (1) Frequency range: 12MHz to 60MHz (FA-238, FA-238V); (2) hickness: 0.6 mm Max. (TSX-3225); (3) vertone order: Fundamental; (4) Applications: Mobile phone, Bluetooth, W-LAN ISM band radio, Clock for MPU.

Diagrams

FA-238 dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
FA-238 16.0000MB-C0
FA-238 16.0000MB-C0

Epson Toyocom

Crystals 16MHz 50ppm 18pF -20C +70C

Data Sheet

0-580: $0.67
580-1000: $0.56
1000-2000: $0.53
2000-5000: $0.52
FA-238 16.0000MB-K3
FA-238 16.0000MB-K3

Epson Toyocom

Crystals 16MHz 50ppm 10pF-20C +70C

Data Sheet

0-1: $0.91
1-10: $0.86
10-50: $0.76
50-100: $0.73
100-250: $0.73
FA-238 16.3840MB-K
FA-238 16.3840MB-K

Epson Toyocom

Crystals 16.384MHz 50ppm 10pF -20C +70C

Data Sheet

0-1: $0.91
1-10: $0.86
10-50: $0.76
50-100: $0.73
FA-238 18.4320MB-C0
FA-238 18.4320MB-C0

Epson Toyocom

Crystals 18.432MHz 50ppm 18pF -20C +70C

Data Sheet

0-580: $0.67
580-1000: $0.56
1000-2000: $0.53
2000-5000: $0.52
FA-238 19.2000MB-K3
FA-238 19.2000MB-K3

Epson Toyocom

Crystals 19.2MHz 50ppm 10pF -20C +70C

Data Sheet

0-1: $0.91
1-10: $0.86
10-50: $0.76
50-100: $0.73
100-250: $0.73
FA-238 19.6608MB-K3
FA-238 19.6608MB-K3

Epson Toyocom

Crystals 19.6608MHz 50ppm 10pF -20C +70C

Data Sheet

0-1: $0.91
1-10: $0.86
10-50: $0.76
50-100: $0.73
100-250: $0.73
FA-238 20.0000MB-K0
FA-238 20.0000MB-K0

Epson Toyocom

Crystals 20MHz 50ppm 10pF -20C +70C

Data Sheet

0-7450: $0.52
7450-10000: $0.50
FA-238 23.5120MB-K0
FA-238 23.5120MB-K0

Epson Toyocom

Crystals 23.512MHz 50ppm 10pF -20C +70C

Data Sheet

0-580: $0.67
580-1000: $0.56
1000-2000: $0.53
2000-5000: $0.52
