Product Summary

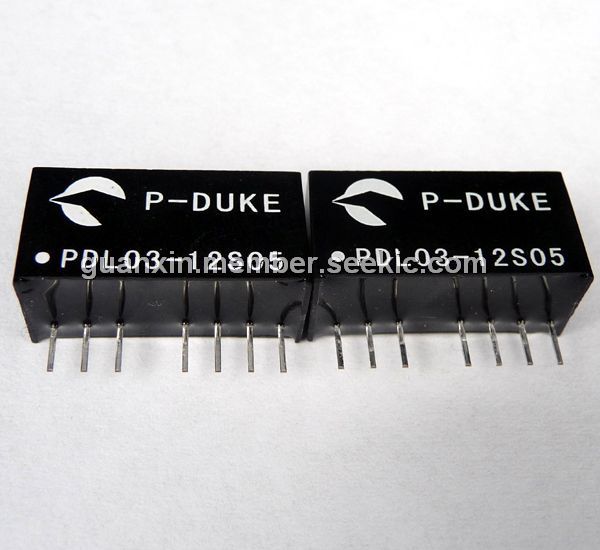

The PDL03-12S05 DC-DC converter offers 3 watts of output power from a 0.86 x 0.36 x 0.44 inch package without derating to 71℃. The PDL03-12S05 has 2:1 wide input voltage of 4.5-9, 9-18, 18-36 and 36-75VDC and features 1600VDC of isolation, short-circuit protection.

Parametrics

PDL03-12S05 absolute maximum ratings: (1)Isolation voltage: Standard 1600VDC, min, Suffix "H" 3000VDC, min; (2)Isolation resistance: 109ohms, min; (3)Isolation capacitance: Standard 200pF, max, Suffix "H" 30pF, max; (4)Switching frequency: 100KHz, min; (5)Case material: Non-conductive black plastic; (6)Potting material: Silicon (UL94-V0).

Features

PDL03-12S05 features: (1)3 watts maximum output power; (2)output current up TO 700mA; (3)SIP package, 0.86 x 0.36x 0.44 inch; (4)high efficiency up to 85%; (5)2:1 wide input voltage range; (6)switching frequency (100KHz, MIN); (7)no external input and output capacitor needed; (8)low ripple & noise.

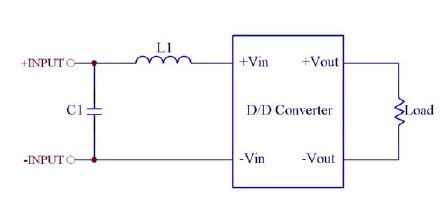

Diagrams

PDL02-05S05
PDL02-05S05
Other

Data Sheet
Negotiable
