Product Summary

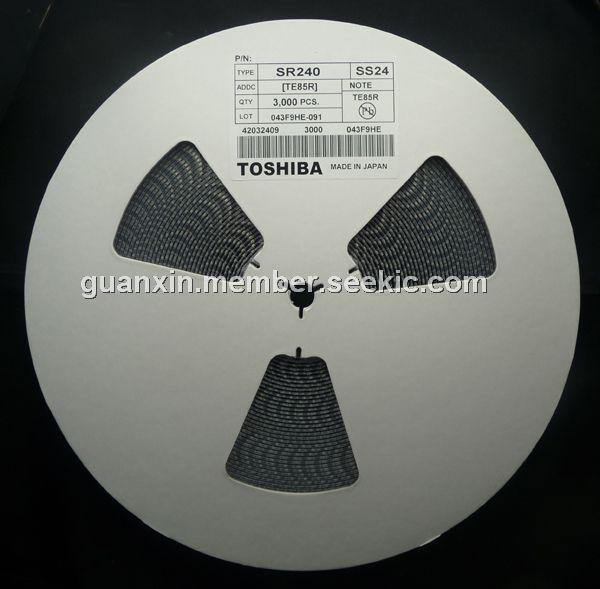

The SR240 is a 2.0A schottky barrier rectifier.

Parametrics

Absolute maximum ratings: (1)Peak Repetitive Reverse Voltage Working Peak Reverse Voltage: 40 V; (2)DC Blocking Voltage: 40 V; (3)RMS Reverse Voltage: 28 V; (4)Average Rectified Output Current (Note 1) @TL = 100℃:2.0 A; (5)Non-Repetitive Peak Forward Surge Current 8.3ms Single half sine-wave superimposed on rated load (JEDEC Method): 50 A; (6)Forward Voltage @IF = 2.0A: 0.50 V; (7)Peak Reverse Current @TA = 25℃: 0.5 mA; (8)At Rated DC Blocking Voltage @TA = 100℃: 10 mA; (9)Typical Junction Capacitance: 170 pF; (10)Operating and Storage Temperature Range: -65 to +150 ℃.

Features

Features: (1)Schottky Barrier Chip; (2)Guard Ring Die Construction for Transient Protection; (3)High Current Capability A B A; (4)Low Power Loss, High Efficiency; (5)High Surge Current Capability; (6)For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Polarity Protection Applications.

Diagrams
