Product Summary

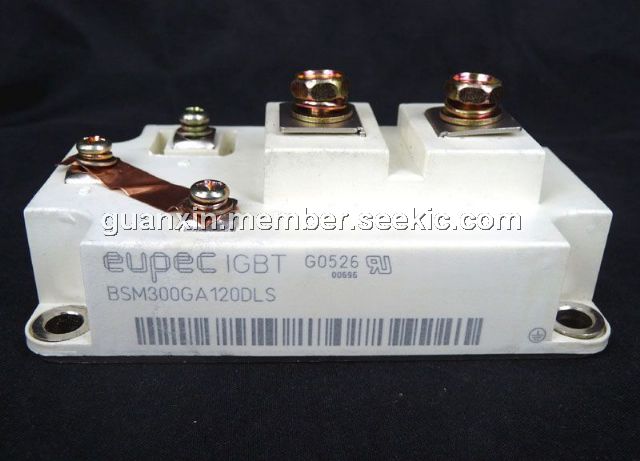

The BSM300GA120DLS is an IGBT Module.
Parametrics
BSM300GA120DLS absolute maximum ratings: (1) Kollektor-Emitter-Sperrspannung collector-emitter voltage: 1200V; (2) Kollektor-Dauergleichstrom: 300A; (3) DC-collector current: 625A; (4) Periodischer Kollektor Spitzenstrom repetitive peak collector current: 600A; (5) Gesamt-Verlustleistung total power dissipation: 2500W; (6) Gate-Emitter-Spitzenpannung gate-emitter peak voltage: ±20V.
Features
BSM300GA120DLS features: (1)VCE: 2.60V; (2)VGE: 4.5V to 6.5V; (3)QG: 3.2μG; (4)RGint: 1.0Ω; (5)Gres: 1.4nF; (6)IGES: 400nA; (7)ICES: 5.0mA
Diagrams
<IMG border=0 alt="BSM300GA120DLS block diagram" src="http://www.seekic.com/uploadfile/ic-mfg/2012102575559846.jpg">
![]() |
