Product Summary

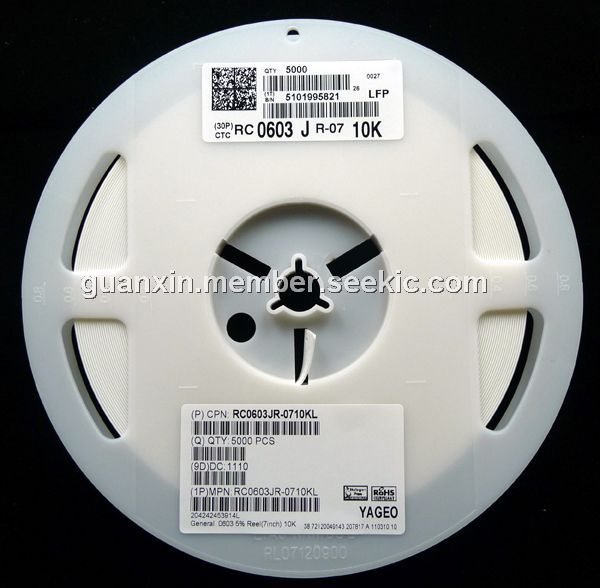

The RC0603JR-0710KL is a general purpose chip resistor.

Parametrics

Absolute maximum ratings: (1)Operating Temperature Range: –55 ℃ to +155 ℃; (2)Maximum Working Voltage: 50 V; (3)Maximum Overload Voltage: 100 V; (4)Dielectric Withstanding Voltage: 100 V; (5)Resistance Range: 5% (E24) 1 Ω to 22 MΩ, 1% (E24/E96) 1 Ω to 10 MΩ, Zero Ohm Jumper < 0.05 Ω; (6)Temperature Coefficient: 1 Ω ≤ R ≤ 10Ω ±200 ppm/℃, 10 MΩ < R ≤ 22 MΩ ±200 ppm/℃, 10 Ω < R ≤ 10 MΩ ±100 ppm/℃; (7)Jumper Criteria: Rated Current 1.0 A, Maximum Current 2.0 A.

Features

Features: (1)RoHS compliant: Products with lead free terminations meet RoHS requirements; (2)Pb-glass contained in electrodes, resistor element and glass are; (3)exempted by RoHS; (4)Reducing environmentally hazardous wastes; (5)High component and equipment reliability; (6)Saving of PCB space; (7)None forbidden-materials used in products/production; (8)Halogen Free Epoxy.

Diagrams

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
RC0603JR-0710KL
RC0603JR-0710KL

Yageo

Thick Film Resistors - SMD 10K OHM 5%

Data Sheet

0-1: $0.04
1-50: $0.01
50-100: $0.01
100-1000: $0.00
1000-5000: $0.00
