Product Summary

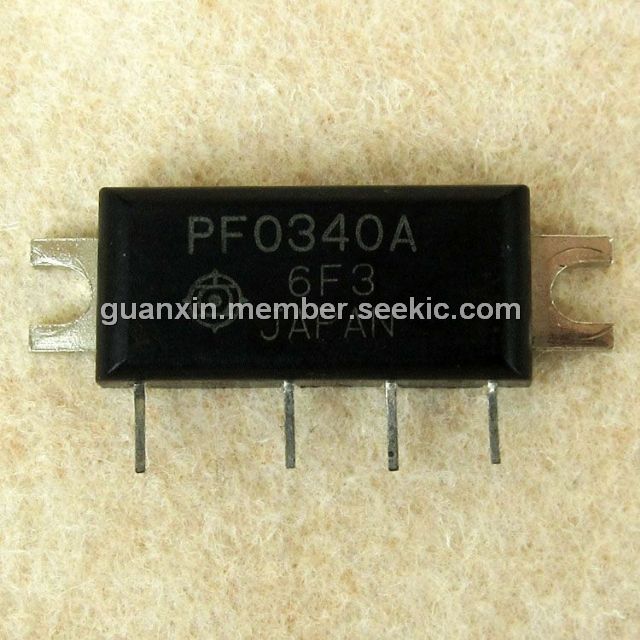

The PF0340A is a MOSFET Power Amplifier Module for UHF Band.
Parametrics
PF0340A absolute maximum ratings: (1)Supply voltage VDD: 17V; (2)Supply current IDD: 3A; (3)PC voltage VPC: 4.5V; (4)Input power Pin: 50mW; (5)Operating case temperature Tc (op): -30℃ to +100℃; (6)Storage temperature Tstg: -40℃ to +110℃.
Features
PF0340A features: (1) Small package: 30×10×5.9 mm; (2) High efficiency: 43% Typ at 9.6V, 40% Typ at 4.8V; (3) Low power control current: 150μA Typ.

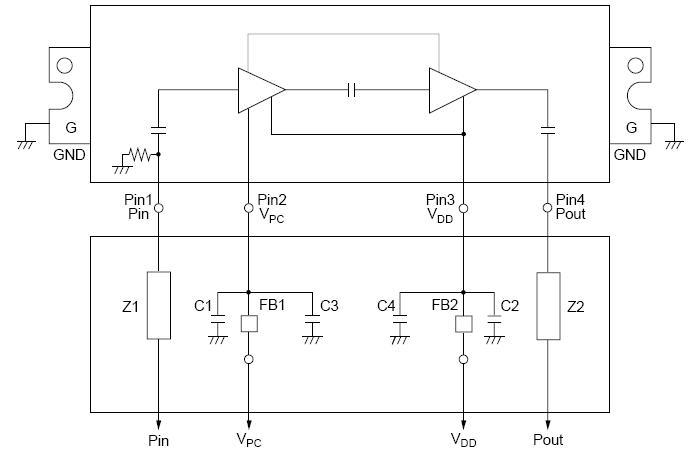

Diagrams
