Product Summary

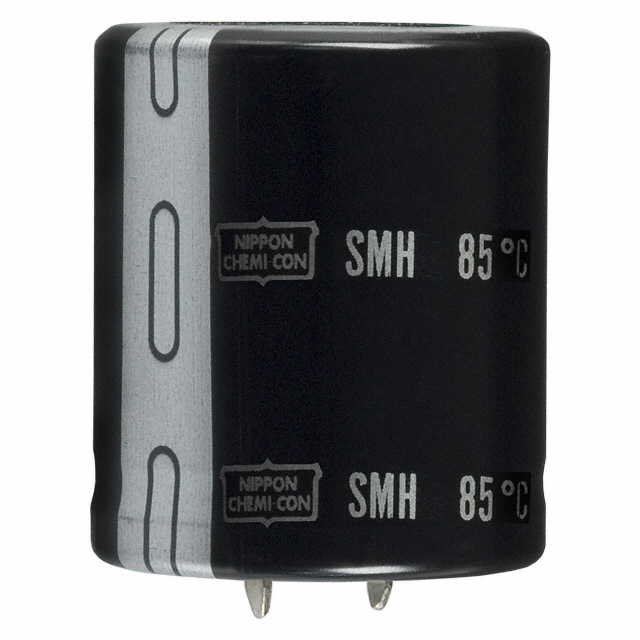

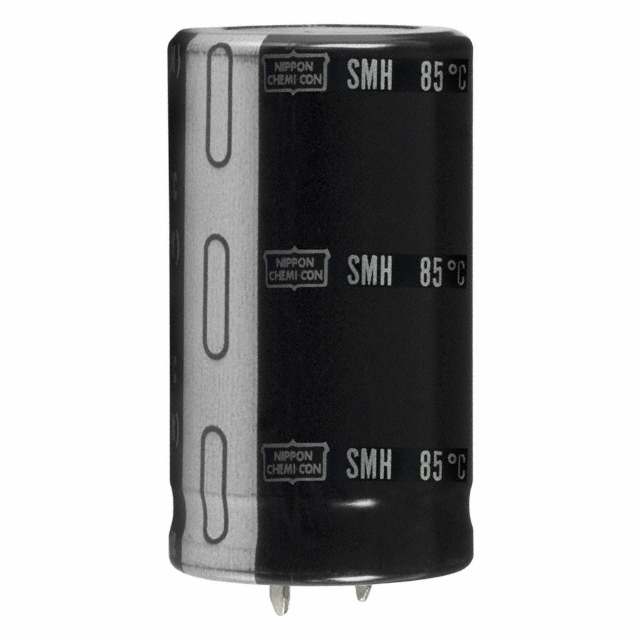

The ESMH101VSN682MA50S is a large capacitance aluminum electrolytic capacitor.

Parametrics

Absolute maximum ratings: (1)Category Temperature Range: -40 to +85℃; (2)Rated Voltage Range: 6.3 to 100Vdc; (3)Capacitance Tolerance: ±20% (M); (4)Endurance: The following specifications shall be satisfied when the capacitors are restored to 20C after subjected to DC voltage with the rated ripple current is applied for 2,000 hours at 85℃.

Features

Features: (1)Endurance with ripple current: 2,000 hours at 85℃; (2)Non solvent-proof type; (3)RoHS Compliant.

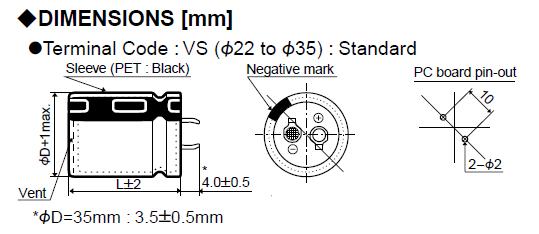

Diagrams
