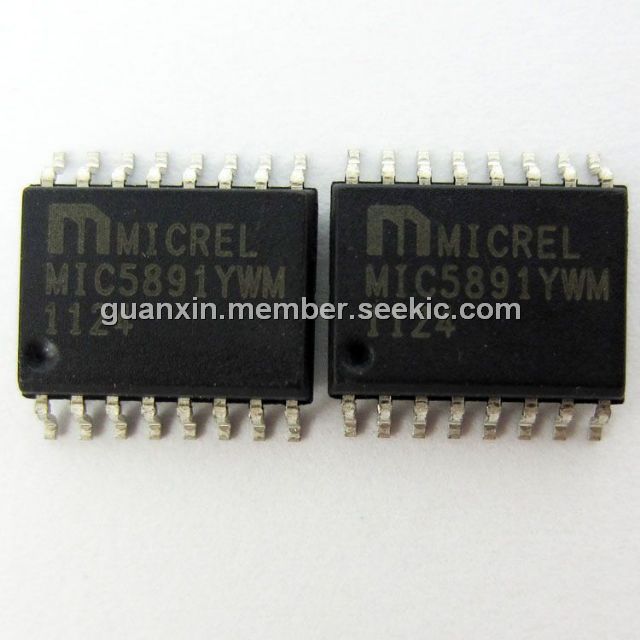

Product Summary
The MIC5891YWM is an 8-Bit Serial-Input Latched Source Driver. It is a high-voltage, high current integrated circuit comprised of eight CMOS data latches, CMOS control circuitry for the common STROBE and OUTPUT ENABLE, and bipolar Darlington transistor drivers for each latch. The applications of the MIC5891YWM include alphanumeric and bar graph displays, led and incandescent displays, relay and solenoid drivers, other high-power loads.
Parametrics
MIC5891YWM absolute maximum ratings: (1)Output Voltage (VOUT): 50V; (2)Logic Supply Voltage Range (VDD): 4.5V to 15V; (3)Load Supply Voltage Range (VBB): 5.0V to 50V; (4)Input Voltage Range (VIN):–0.3V to VDD+0.3V; (5)Continuous Collector Current (IC): 500mA; (6)Package Power Dissipation: see graph; (7)Operating Temperature Range (TA): –55℃ to +125℃; (8)Storage Temperature Range (TS): –65℃ to +150℃.
Features
MIC5891YWM features: (1)High-voltage, high-current outputs; (2)Output transient protection diodes; (3)CMOS-, PMOS-, NMOS-, and TTL-compatible inputs; (4)5MHz typical data input rate; (5)Low-power CMOS latches.

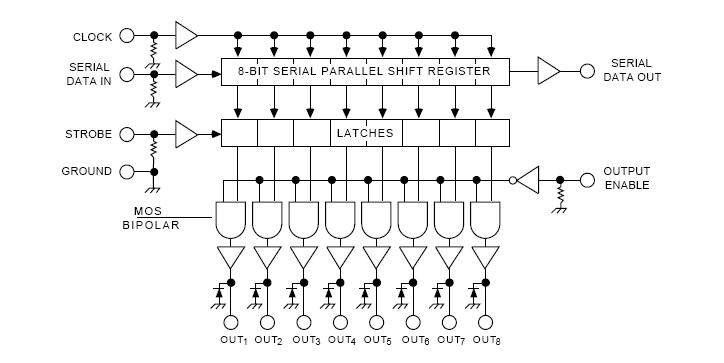

Diagrams
