Product Summary
The MBI5026CP is a 16-bit constant current led sink driver. The MBI5026CP is designed for LED displays. As an enhancement of its predecessor, MBI5016, MBI5026 exploits Precision Drive, technology to enhance its output characteristics. The MBI5026CP contains a serial buffer and data latches which convert serial input data into parallel output format. At the MBI5026CP output stage, sixteen regulated current ports are designed to provide uniform and constant current sinks for driving LEDs within a large range of Vf variations.
Parametrics
MBI5026CP absolute maximum ratings: (1)Supply Voltage: 4.5V to 5.5V; (2)Output Voltage: 17.0V; (3)Output Current: 5mA to 90mA; (4)Input Voltage at TA= -40℃ to 85℃: 0.8VDD to VDD V; (5)Output Leakage Current: 0.5μA; (6)Pull-up Resistor: 250KΩ to 800KΩ; (7) Pull-down Resistor: 250KΩ to 800KΩ.
Features
MBI5026CP features: (1)16 constant-current output channels; (2)Constant output current invariant to load voltage change; (3)Excellent output current accuracy: between channels: ＜±3% (max.), and between ICs: ＜±6% (max.); (4)Output current adjusted through an external resistor; (5) Constant output current range: 5-90mA Fast response of output current, OE (min.): 200 ns; (6)25MHz clock frequency; (7) Schmitt trigger input; (8)5V supply voltage.

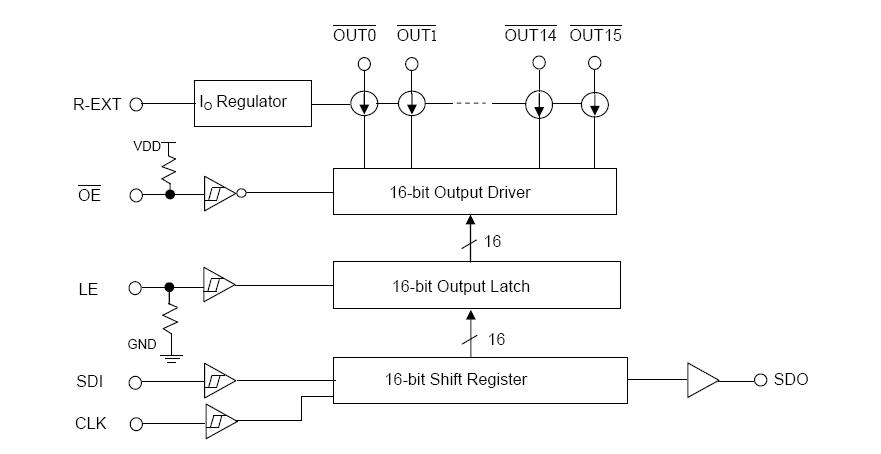

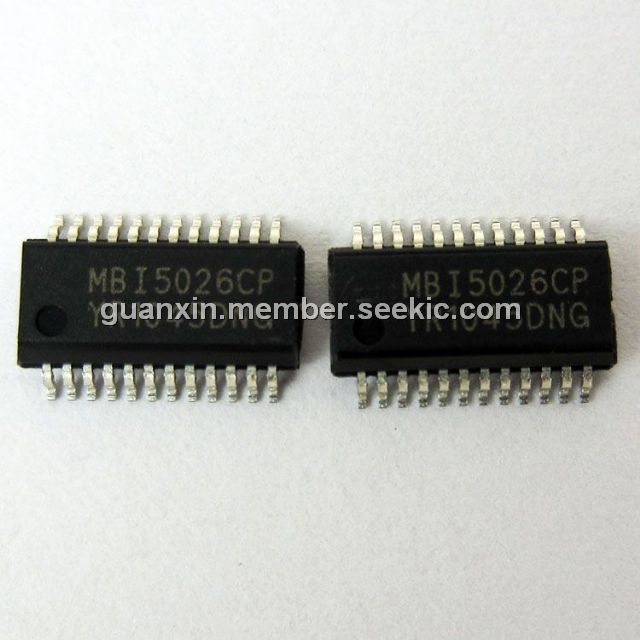

Diagrams
