LM2940SX-5.0

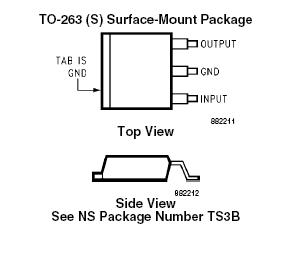

LM2940SX-5.0, 1A, low dropout regulator, TO-263, 60V, 2KV

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.22~0.45 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.22~0.45

PartNumber:: LM2940SX-5.0

Brand:: National Semiconductor - NS | Pack: TO | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Rosy's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-26

From Other Seller

Part Number:LM2940SX-5.0
US $0.22 - 0.45
TMS320C6414TBGLZA7

US $58.00 - 65.00 / Piece
(0) Remove
IRF9540NPBF

US $0.50 - 3.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

The LM2940SX-5.0 is a 1A low dropout regulator. It features the ability to source 1A of output current with a dropout voltage of typically 0.5V and a maximum of 1V over the entire temperature range. Furthermore, a quiescent current reduction circuit has been included which reduces the ground current when the differential between the input voltage and the output voltage exceeds approximately 3V. The quiescent current with 1A of output current and an input-output differential of 5V is therefore only 30mA. Higher quiescent currents only exist when the regulator is in the dropout mode (VIN. VOUT≤3V). Designed also for vehicular applications, the LM2940/ LM2940C and all regulated circuitry are protected from reverse battery installations or 2-battery jumps. During line transients, such as load dump when the input voltage can momentarily exceed the specified maximum operating voltage, the regulator will automatically shut down to protect both the internal circuits and the load. The LM2940SX-5.0 cannot be harmed by temporary mirror-image insertion. Familiar regulator features such as short circuit and thermal overload protection are also provided.

Parametrics

LM2940SX-5.0 absolute maximum ratings: (1)LM2940S, J, WG, T, MP≤100ms: 60V; (2)LM2940CS, T≤1 ms: 45V; (3)Internal Power Dissipation: Internally Limited; (4)Maximum Junction Temperature: 150℃; (5)Storage Temperature Range: -65℃≤TJ≤+150℃; (6)Soldering Temperature TO-263 (S): 235℃, 30s; (7)ESD Susceptibility: 2kV.

Features

LM2940SX-5.0 features: (1)Dropout voltage typically 0.5V @IO = 1A; (2)Output current in excess of 1A; (3)Output voltage trimmed before assembly; (4)Reverse battery protection; (5)Internal short circuit current limit; (6)Mirror image insertion protection; (7)P+ Product Enhancement tested.
