Product Summary

The EKMV401VSN102MA60S is a large capacitance aluminum electrolytic capacitor.

Parametrics

EKMV401VSN102MA60S absolute maximum ratings: (1)Category Temperature Range: -25℃ to +105℃; (2)Rated Voltage Range: 160V to 450V; (3)Capacitance Tolerance: ±20% (M).

Features

EKMV401VSN102MA60S features: (1)For frequently change of regenerative voltage from AC servo amplifier and inverter control; (2)Ideal use to power supply, specially power source with turn on and off frequently and highly voltage fl uctuation; (3)Improved the resistance for charge and discharge from same dimension of KMQ series; (4)Endurance with ripple current : 3,000 hours at 105℃; (5)Rated voltage range: 350V to 450V, Capacitance 82μF to 1,200μF; (6) Non Solvent resistant type; (7) RoHS Compliant.

Diagrams

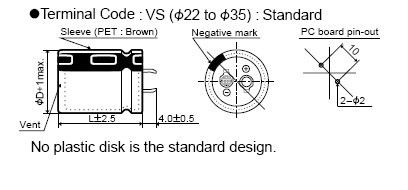

EKMV401VSN102MA60S dimension
