Product Summary

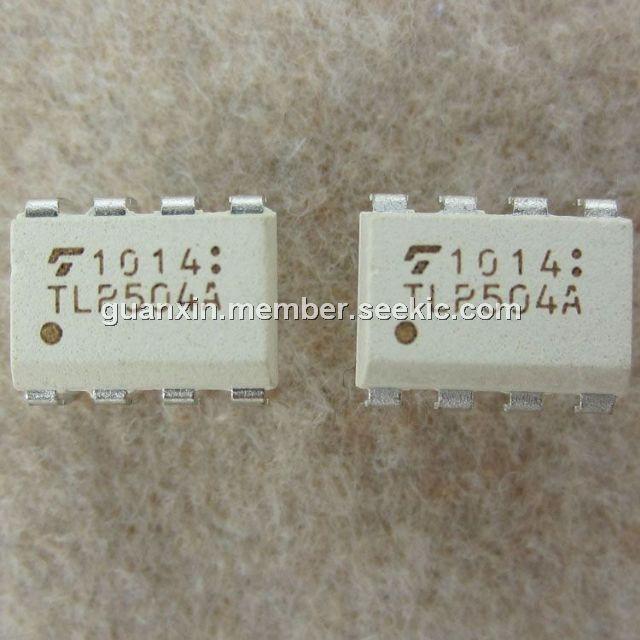

The TLP504 is a photocoupler. It consists of a photo-transistor optically coupled to a gallium arsenide infrared emitting diode. The TLP504 offers two isolated channels in an eight lead plastic DIP package.
Parametrics
TLP504 absolute maximum ratings: (1)Forward Current: 60mA; (2)Forward Current Derating: -0.7mA/℃ (Ta≥39℃); (3)Pulse Forward Current: 1A; (4)Reverse Voltage: 5V; (5)Junction Temperature: 125℃; (6)Collector-Emitter Voltage: 55V; (7)Emitter-Collector Voltage: 7V; (8)Collector Current: 50mA; (9)Collector Power Dissipation: 150mW; (10)Storage Temperature Range: -55℃ to 150℃; (11)Operating Temperature Range: -55℃ to 100℃; (12)Lead Soldering Temperature: 260℃(10s).
Features
TLP504 features: (1) Collector-Emitter Voltage: 55V; (2) Current Transfer Ratio: 50%; (3) Isolation Voltage: 2500V; (4) UL Recognized: UL1577 File NO. E67349.
Diagrams
Image | Part No | Mfg | Description | Pricing (USD) |
Quantity | |||||||||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
TLP504A |
PHOTOCOUPLER DUAL TRANS-OUT 8DIP |
Data Sheet |
Negotiable |
|
||||||||||||||
TLP504A−2 |
Other |
Data Sheet |
Negotiable |
|
||||||||||||||
TLP504A(F) |
Toshiba |
Transistor Output Optocouplers TR HIGH Vceo (55V) |
Data Sheet |
|
|
|||||||||||||
TLP504A(GB) |
PHOTOCOUPLER DUAL TRANS-OUT 8DIP |
Data Sheet |
Negotiable |
|
||||||||||||||
TLP504A(GB,F) |
Toshiba |
Transistor Output Optocouplers 55Vceo 2500Vrms standard |
Data Sheet |
|
|
|||||||||||||
TLP504A-2 |
PHOTOCPLR QUAD TRANS-OUT 16-DIP |
Data Sheet |
Negotiable |
|
||||||||||||||
TLP504A-2(F) |
PHOTOCPLR QUAD TRANS-OUT 16-DIP |
Data Sheet |
Negotiable |
|
||||||||||||||
TLP504A-2(GB) |
PHOTOCPLR QUAD TRANS-OUT 16-DIP |
Data Sheet |
Negotiable |
|
