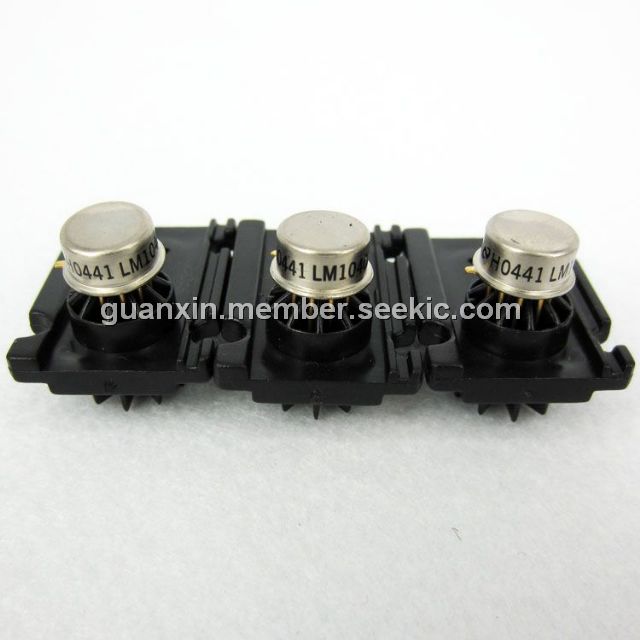

Product Summary

The LM104CH is a precision voltage regulator which can be programmed by a single external resistor to supply any voltage from 40V down to zero while operating from a single unregulated supply. The LM104CH can also provides 0.01-percent regulation in circuits using a separate, floating bias supply, where the output voltage is limited only by the breakdown of external pass transistors. Although designed primarily as linear, series regulators, the LM104CH can be used as switching regulators, current regulators or in a number of other control applications.

Parametrics

LM104CH absolute maximum ratings: (1)Input Voltage: 50V; (2)Input-Output Voltage Differential: 50V; (3)Power Dissipation: 500mW; (4)Operating Temperature Range: -55℃ to +125℃; (5)Storage Temperature Range: -65℃ to +150℃; (6)Lead Temperature (Soldering, 10 sec.): 260℃ for plastic.

Features

LM104CH features: (1)Subsurface Zener reference; (2)1mV regulation no load to full load; (3)0.01%/V line regulation; (4)0.2 mV/V ripple rejection; (5)0.3% temperature stability over military temperature range.

Diagrams

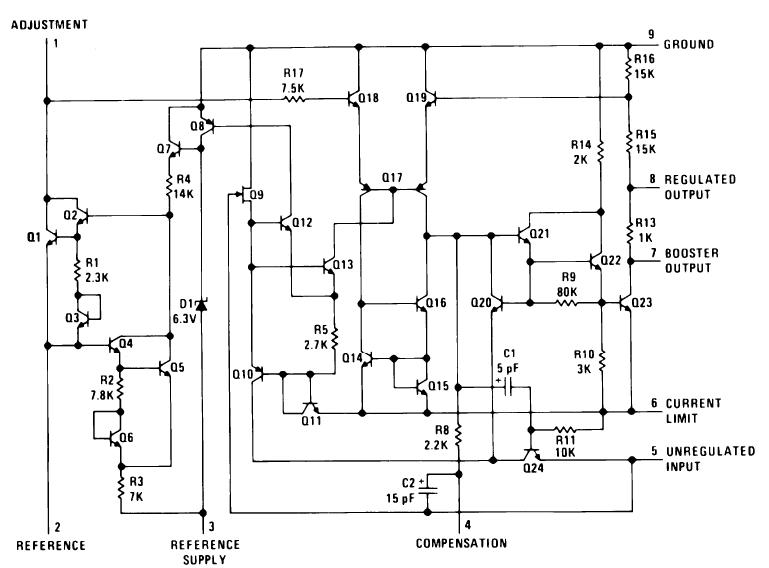

LM104CH block diagram
