Product Summary
The FZT953TA is a SOT223 PNP silicon planar high current transistor.
Parametrics
FZT953TA absolute maximum ratings: (1)Collector-Base Voltage, VCBO: -140V; (2)Collector-Emitter Voltage, VCEO: -100V; (3)Emitter-Base Voltage, VEBO: -6V; (4)Peak Pulse Current, ICM: -10A; (5)Continuous Collector Current, IC: -5A; (6)Power Dissipation at Tamb=25℃, Ptot: 3W; (7)Operating and Storage Temperature Range Tj: Tstg: -55 to +150℃.
Features
FZT953TA features: (1)5 Amps continuous current , up to 15 Amps peak current; (2)Very low saturation voltages; (3)Excellent gain characteristics specified up to 10 Amps; (4)Ptot = 3 watts.

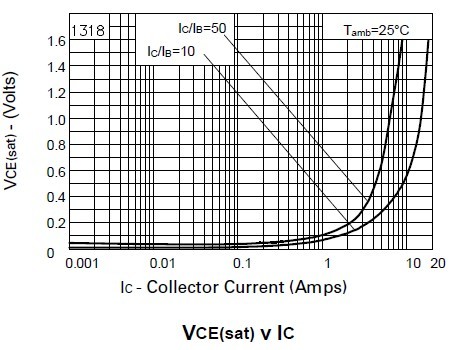

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 FZT953TA |
Diodes Inc. |
Transistors Bipolar (BJT) PNP HighCt Low Sat |
Data Sheet |
|
|
||||||||||||
