Product Summary

The ZM4746A is a surface mount zener diode.

Parametrics

ZM4746A absolute maximum ratings: (1)Zener Current: Pd/Vz mA; (2)Power Dissipation @ TA = 25℃: 1W; (3)Thermal Resistance - Junction to Ambient Air RθJA: 170K/W; (4)Forward Voltage @ IF = 200mA: 1.2V; (5)Operating & Storage Temperature Range: -65℃ to +200℃.

Features

ZM4746A features: (1)1.0W Power Dissipation; (2)3.9V - 100V Nominal Zener Voltages; (3) Standard VZ Tolerance is 5%.

Diagrams

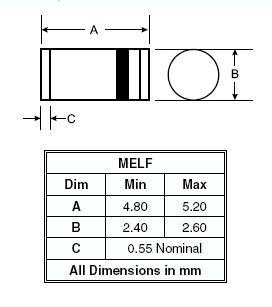

ZM4746A dimension
