Product Summary

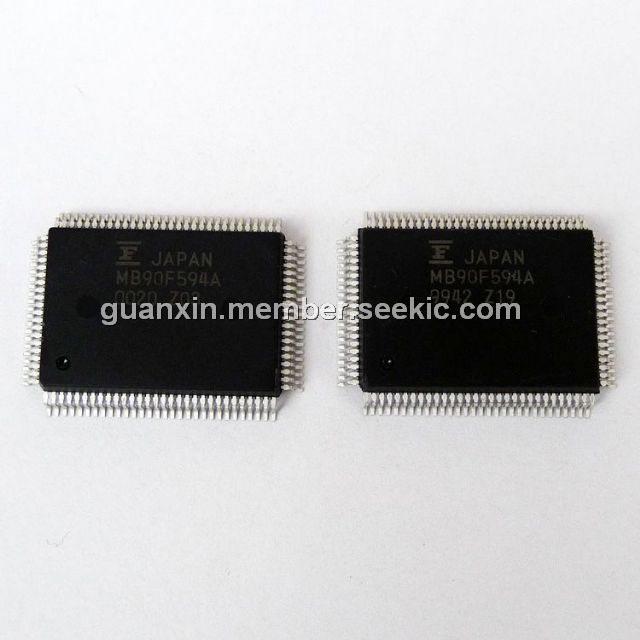

The mb90f594 is a 16-bit proprietary microcontroller. The mb90f594 with two FULL-CAN interfaces and FLASH ROM is especially designed for automotive and industrial applications. Its main features are two on board CAN Interfaces, which conform to V2.0 Part A and Part B, while supporting a very flexible message buffer scheme and so offering more functions than a normal full CAN approach.
Parametrics
mb90f594 absolute maximum ratings: (1)Power supply voltage VCC: VSS-0.3 to VSS+6.0 V; (2)Input voltage VI: VSS - 0.3 to VSS + 6.0 V; (3)Output voltage VO: VSS - 0.3 to VSS + 6.0 V; (4)Clamp Current: -2.0mA to 2.0mA; (5)Power consumption: 400mW; (6)Operating temperature TA: –40℃ to +85℃; (7)Storage temperature TSTG: –55℃ to +150℃.
Features
mb90f594 features: (1) Clock; (2) Embedded PLL clock multiplication circuit; (3) Operating clock (PLL clock) can be selected from divided-by-2 of oscillation or one to four times the oscillation (at oscillation of 4 MHz, 4 MHz to 16 MHz); (4) Minimum instruction execution time: 62.5 ns (operation at oscillation of 4 MHz, four times the oscillation clock, VCC of 5.0 V).
Diagrams
 |
