Product Summary

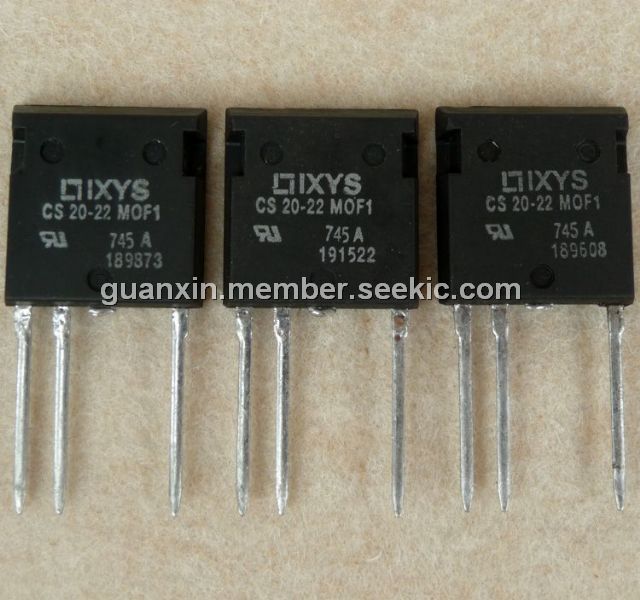

The CS20-22MOF1 is a High Voltage Phase Control Thyristor. The applications of the CS20-22MOF1 include controlled rectifiers, power supplies, drives, AC switches, capacitor discharge control, flash tubes, x ray and laser generators.

Parametrics

CS20-22MOF1 absolute maximum ratings: (1)TVJ: -40℃ to +125℃; (2)Tstg: -55℃ to +125℃; (3)VISOL when IISOL≤1mA; 50/60 Hz: 2500V; (4) FC when mounting force with clip: 20N to 120N; (5) Weight: 9g; (6) VGT when VD = 6V: 2.3V; (7) IGT when VD=6V: 250mA.

Features

CS20-22MOF1 features: (1)high voltage thyristor for line frequency; (2)chip technology for long term stability; (3)ISOPLUS i4-PACTM high voltage package isolated back surface; (4)enlarged creepage towards heatsink; (5)enlarged creepage between high; (6)voltage pins application friendly pinout; (7)high reliability; (8)industry standard outline.

Diagrams

CS20-22MOF1 dimmesion

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
CS20-22moF1
CS20-22moF1
Ixys
SCRs 20 Amps 2200V
Data Sheet
Negotiable
