Product Summary

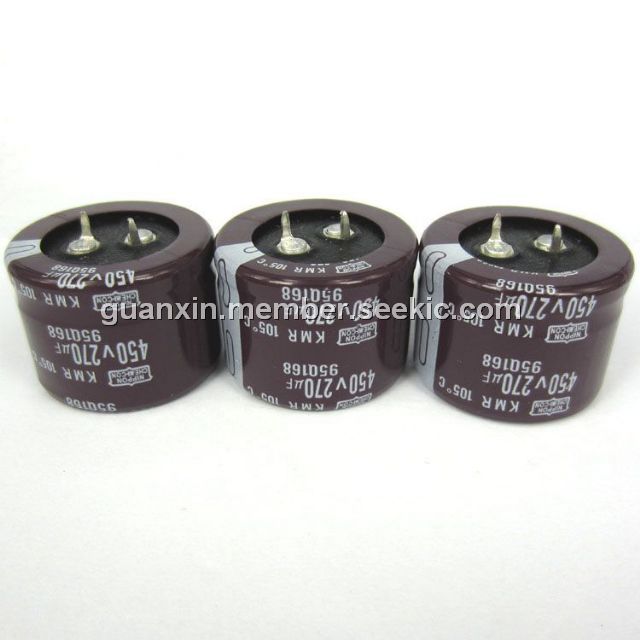

The EKMR451VSN271MA25S is an Aluminum Electrolytic Capacitor.

Parametrics

EKMR451VSN271MA25S absolute maximum ratings: (1)Category Temperature Range: -25℃ to 105℃; (2)Rated Voltage Range: 160V to 450V; (3)Capacitance Tolerance at 20℃, 120Hz: ±20% (M); (4)Leakage Current: I≤3√￣CV, where, I: Max. leakage current (μA), C : Nominal capacitance (μF), V : Rated voltage (V) at 20℃ after 5minutes.

Features

EKMR451VSN271MA25S features: (1) Downsized 5mm in height from current snap-ins KMQ series; (2) Max. 50% up ripple current than same case size of KMQ series; (3) Endurance: 105C 2,000hrs with ripple current; (4) Rated voltage range: 160W to 450wv, Capacitance range: 100 to 3900μF; (5) for inverter control, switching power supply; (6) Non solvent-proof type; (7) RoHS Compliant.

Diagrams

EKMR451VSN271MA25S dimmension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
EKMR451VSN271MA25S
EKMR451VSN271MA25S
United Chemi-Con
Aluminum Electrolytic Capacitors - Snap In 450Volts 270uF 20% Tol.
Data Sheet
0-1: $7.70
1-25: $6.36
25-50: $5.65
50-100: $5.09
