Product Summary

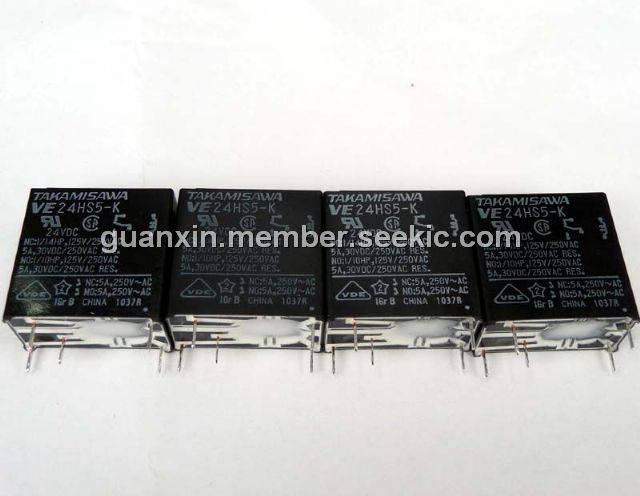

The VE-24HS5-K is a power relay.

Parametrics

VE-24HS5-K absolute maximum ratings: (1)Arrangement: 1 form C (SPDT); (2)Material: Gold overlay silver alloy; (3)Style: Single; (4)Resistance (initial) (at 1 A 6 VDC): Maximum 70mΩ (VE-HM, H); (5)Rating (resistive): 5A, 250VAC; (6)Maximum Carrying Current: 7A; (7)Maximum Switching Power: 1,250 VA (N.O.), 750 VA (N.C.); (8)Maximum Switching Voltage 250 VAC, 150 VDC; (9)Maximum Switching Current: 5A (N.O.), 3A (N.C.); (10)Nominal Power (at 20℃): Standard type: 0.36W. High sensitivity type: 0.25W; (11)Operate Power (at 20℃): Standard type: 0.177W. High sensitivity type: 0.13W; (12)Operating Temperature: Standard: –40℃ to +85℃. High sensitivity: –40℃ to +90℃ (no frost); (13)Operate (at nominal voltage): Maximum 10 ms; (14) Release (at nominal voltage): Maximum 5 ms

Features

VE-24HS5-K features: (1)UL, CSA, VDE recognized; (2)1 form A (SPST-NO) or 1 form C (SPDT) contact; (3)Low cost, miniature relay with big performance in small package: Surge strength: 4000V or 6000V; (4)Slim type—meets high density mounting requirement; (5)Wide operating range; (6)Easy circuit design with completely separated terminal arrangement (coil and contact terminals); (7)Plastic sealed type backfilled with nitrogen.

Diagrams

VE-24HS5-K Dimmension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
VE-24HS5-K
VE-24HS5-K
Fujitsu
General Purpose / Industrial Relays POWER
Data Sheet
0-1: $1.29
1-100: $1.10
100-500: $0.94
500-1000: $0.86
