Product Summary

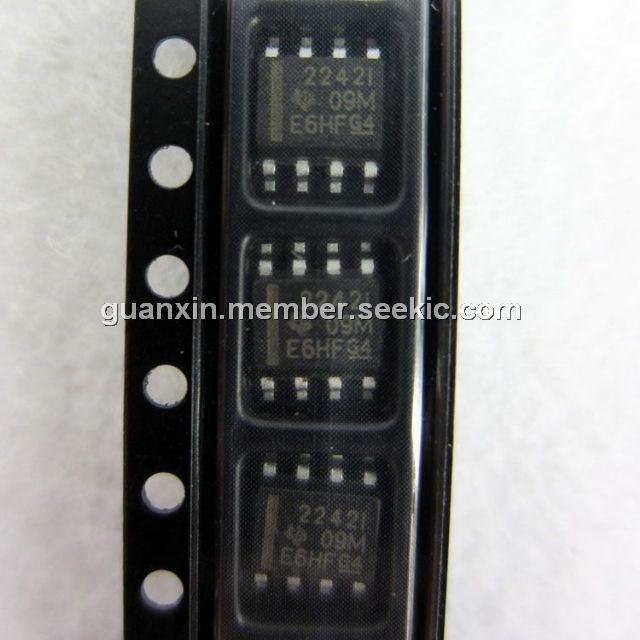

The TLV2242ID is an operational amplifier. The TLV2242ID offers very low supply current of only 1mA per channel. The low supply current is coupled with extremely low input bias currents enabling them to be used with mega-W resistors making them ideal for portable, long active life, applications. DC accuracy is ensured with a low typical offset voltage as low as 600mV, CMRR of 100 dB, and minimum open loop gain of 100V/mV at 2.7V.
Parametrics
TLV2242ID absolute maximum ratings: (1)Supply voltage, VCC: 16.5 V; (2)Differential input voltage: ±VCC; (3)Input current, II (any input): ±10mA; (4)Output current: ±10mA; (5)Continuous total power dissipation: See Dissipation Rating Table; (6)Operating free-air temperature range, TA:–40℃ to 125℃; (7)Maximum junction temperature, TJ: 150℃; (8)Storage temperature range, Tstg:–65℃ to 150℃; (9)Lead temperature 1,6 mm (1/16 inch) from case for 10 seconds: 260℃.
Features
TLV2242ID features: (1)Micropower Operation: 1μA/Channel; (2)Rail-to-Rail Input/Output; (3)Gain Bandwidth Product: 5.5 kHz; (4)Supply Voltage Range: 2.5V to 12V; (5)Specified Temperature Range: TA=0℃ to 70℃ for Commercial Grade, TA=0℃ to 125℃ for Industrial Grade; (6)Ultrasmall Packaging: 8-Pin MSOP; (7) Universal OpAmp EVM.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 TLV2242ID |
Texas Instruments |
Operational Amplifiers - Op Amps Dual Micropwr 2.5V RRIO Single Supply |
Data Sheet |
|
|
||||||||||||
|
TLV2242IDG4 |
Texas Instruments |
Operational Amplifiers - Op Amps Dual Micropwr 2.5V RRIO Single Supply |
Data Sheet |
|
|
||||||||||||
|
TLV2242IDGKR |
Texas Instruments |
Operational Amplifiers - Op Amps Dual Micropwr 2.5V RRIO Single Supply |
Data Sheet |
|
|
||||||||||||
|
TLV2242IDGKRG4 |
Texas Instruments |
Operational Amplifiers - Op Amps Dual Micropwr 2.5V RRIO Single Supply |
Data Sheet |
|
|
||||||||||||
|
TLV2242IDGK |
Texas Instruments |
Operational Amplifiers - Op Amps Dual Micropwr 2.5V RRIO Single Supply |
Data Sheet |
|
|
||||||||||||
|
TLV2242IDGKG4 |
Texas Instruments |
Operational Amplifiers - Op Amps Dual Micropwr 2.5V RRIO Single Supply |
Data Sheet |
|
|
||||||||||||
|
TLV2242IDRG4 |
Texas Instruments |
Operational Amplifiers - Op Amps Dual Micropwr 2.5V RRIO Single Supply |
Data Sheet |
|
|
||||||||||||
|
TLV2242IDR |
Texas Instruments |
Operational Amplifiers - Op Amps Dual Micropwr 2.5V RRIO Single Supply |
Data Sheet |
|
|
||||||||||||
