L7818CV

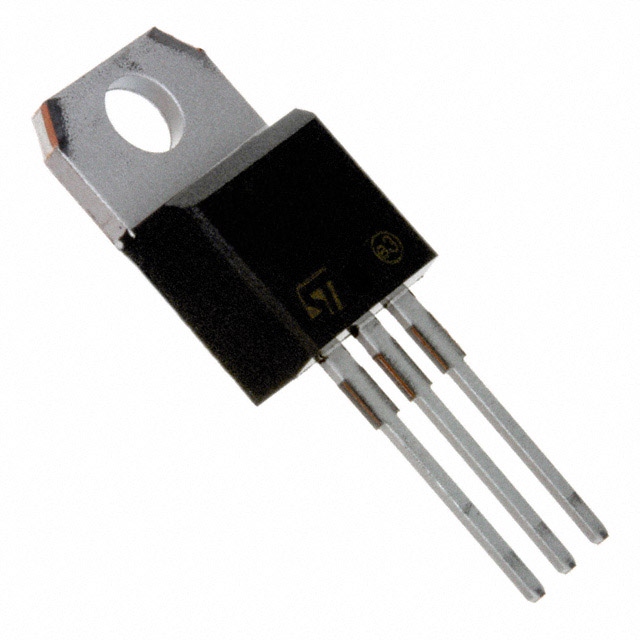

L7818CV, Positive voltage regulator, TO-220, 5V to 18V, 40V, 35V

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.09~0.17 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.09~0.17

PartNumber:: L7818CV

Brand:: STMicroelectronics - ST | Pack: TO | D/C: 11+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Rosy's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-07-04

From Other Seller

Part Number:L7818CV
US $0.09 - 0.17
AT45DB161D-SU

US $1.50 - 3.50 / Piece
(0) Remove
FM31256-G

US $2.40 - 4.20 / Piece
(0) Remove
Quantity:

piece

Product Summary

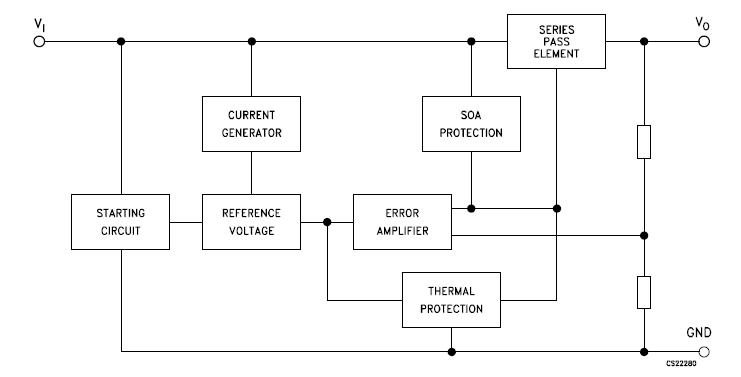

The L7818CV is a Positive voltage regulator. The L7818CV is available in TO-220, TO-220FP, TO-3, D2PAK and DPAK packages and several fixed output voltages, making it useful in a wide range of applications. These regulators can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type employs internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1A output current. Although designed primarily as fixed voltage regulators, these devices can be used with external components to obtain adjustable voltage and currents.

Parametrics

L7818CV absolute maximum ratings: (1)DC input voltage for VO= 5V to 18V: 35V; (2)DC input voltage for VO= 20V, 24V: 40V; (3)Output current: Internally limited; (4)Power dissipation: Internally limited; (5)Storage temperature range: -65℃ to 150℃; (6)Operating junction temperature range: 0℃ to 150℃.

Features

L7818CV features: (1)Output current to 1.5 A; (2)Output voltages of 5V; 6V; 8V; 8.5V; 9V; 12V; 15V; 18V; 24 V; (3)Thermal overload protection; (4)Short circuit protection; (5)Output transition SOA protection.
