Product Summary

The CM10AD01-24H is a Mitsubishi IGBT module. The applications of the CM10AD01-24H include AC & DC motor controls, General purpose inverters.

Parametrics

CM10AD01-24H absolute maximum ratings: (1)VCES Collector-emitter voltage: 600V; (2)VGES Gate-emitter voltage: ±20V; (3)IC Collector Current: 10A; (4)ICM Collector Current: 20A; (5)IE Emitter Current: 10A; (6)IEM Emitter Current: 20A; (7)PC Maximum collector dissipation TC=25℃: 40W.

Features

CM10AD01-24H features: (1) IC: 10A; (2) VCES: 600V; (3) Insulated Type; (4) CIB Module; (5)3φ Inverter + 3φ Converter + Brake Thyristor + Thermistor + Current shunt resistor.

Diagrams

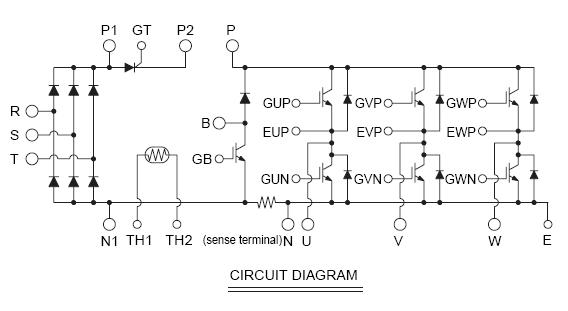

CM10AD01-24H block diagram
