Product Summary

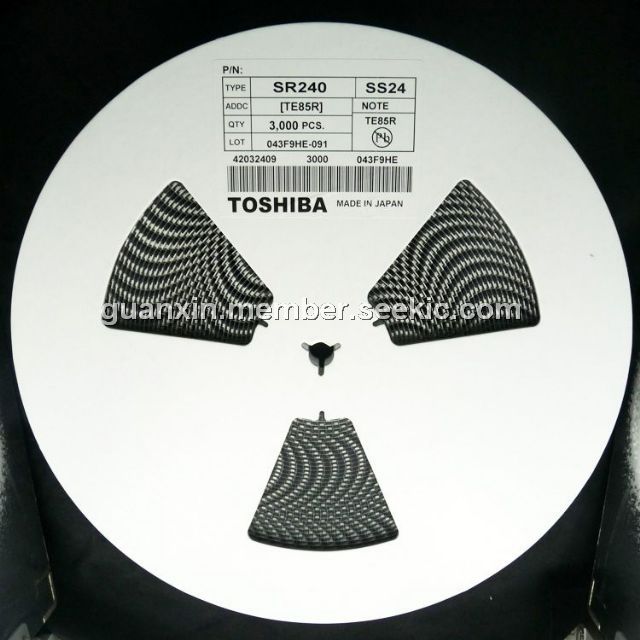

The SR240/SS24 is a 2.0A schottky barrier rectifier.
Parametrics
SR240/SS24 absolute maximum ratings: (1)Peak Repetitive Reverse Voltage: 40V; (2)Working Peak Reverse Voltage: 40V; (3)DC Blocking Voltage: 40V; (4)RMS Reverse Voltage: 28V; (5)Average Rectified Output Current @TL = 100℃: 2.0A; (6)Non-Repetitive Peak Forward Surge Current 8.3ms Single half sine-wave superimposed on rated load (JEDEC Method): 50A; (7)Forward Voltage @IF = 2.0A: 0.5V; (8)Peak Reverse Current @TA = 25℃: 0.5mA; (9)At Rated DC Blocking Voltage @TA = 100℃: 10mA; (10)Typical Junction Capacitance: 170pF; (11)Typical Thermal Resistance Junction to Lead: 15K/W; (12)Typical Thermal Resistance Junction to Ambient: 50K/W; (13)Operating and Storage Temperature Range: -65℃ to 150℃.
Features
SR240/SS24 features: (1)Schottky Barrier Chip; (2)Guard Ring Die Construction for Transient Protection; (3)High Current Capability A B A; (4)Low Power Loss, High Efficiency; (5)High Surge Current Capability; (6)For Use in Low Voltage, High Frequency Inverters, Free Wheeling, and Polarity Protection Applications.
