Product Summary

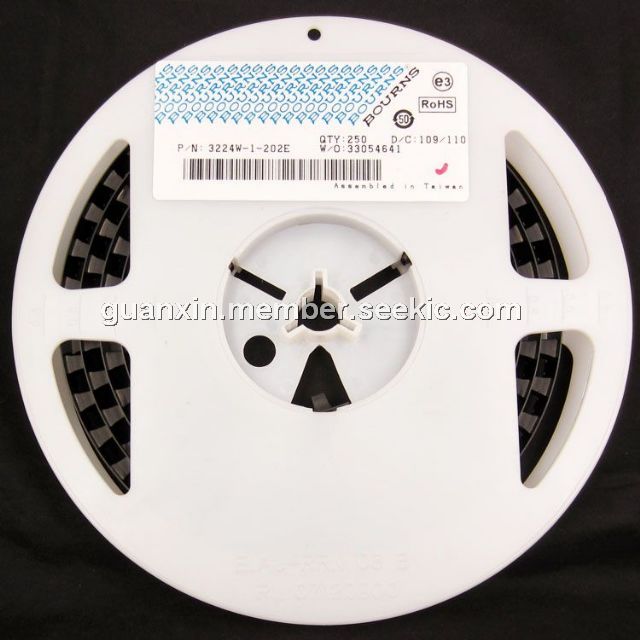

The 3224W-1-202E is a 3224-4 mm SMD Trimming Potentiometer.

Parametrics

3224W-1-202E absolute maximum ratings: (1)Standard Resistance Range: 10 to 2 megohm; (2)Resistance Tolerance: ±10% std.; (3)Absolute Minimum Resistance (whichever is greater): 1% or 2.0ohms; (4)Contact Resistance Variation: 1% or 3ohms max.; (5)Resolution: Essentially Infinite; (6)Insulation Resistance: 500vdc, 100 megohms min.; (7)Dielectric Strength Sea Level: 600vac (1 minute); (8)Adjustment Angle: 11 turns nom.

Features

3224W-1-202E features: (1)Surface Mount 4 mm Square/Multiturn Cermet/Industrial/Sealed; (2)Sealed to withstand board wash processing; (3)Pick and place centering design, with flush adjustment; (4)4mm design meets EIA/EIAJ/IPC/VECI SMD standard trimmer footprint; (5)Low CRV - 1%; (6)DESC selected material drawing #92021; (7)RoHS compliant - see processing information on lead free surface mount trimmers.

Diagrams

3224W-1-202E dimension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)
Quantity
3224W-1-202E
3224W-1-202E

Bourns

Trimmer Resistors - SMD 4mm 2Kohms 10% Square Cermet Sealed

Data Sheet

0-1: $3.13
1-10: $2.68
10-50: $2.52
50-100: $2.32
