Product Summary

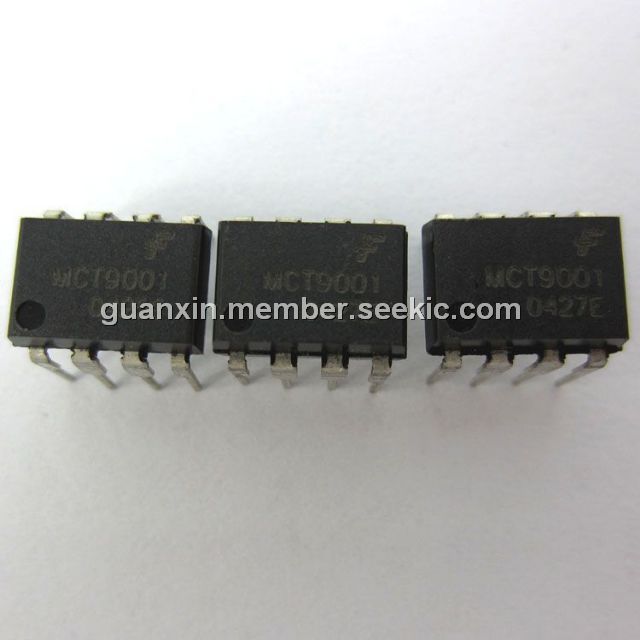

The MCT9001 is a dual phototransistor optocoupler. The MCT9001 Optocoupler has two channels for density applications. For four channel applications, two-packages fit into a standard 16-pin DIP socket. Each channel is an NPN silicon planar phototransistor optically coupled to a gallium arsenide infrared emitting diode. The applications of the MCT9001 include AC Line/Digital Logic - isolate high voltage transients, Digital Logic/Digital Logic - Eliminate spurious grounds, Digital Logic/AC Triac Control - isolate high voltage transients, Twisted pair line receiver - Eliminate ground loop feedthrough, Telephone/Telegraph line receiver - isolate high voltage transients, High Frequency Power Supply Feedback Control - Maintain floating grounds and transients, Relay contact monitor - isolate floating grounds and transients, Power supply monitor - Isolate transients.
Parametrics
MCT9001 absolute maximum ratings: (1)Forward Current - Continuous: 60mA; (2)Forward Current - Peak (PW = 1μs, 300pps): 3A; (3)Reverse Voltage: 5V; (4)LED Power Dissipation @ TA=25℃: 100mW; (5)LED Power Dissipation Derate above 25℃ (Total Input): 1.1mW/℃; (6)Collector Current - Continuous: 30mA; (7)Detector Power Dissipation @ TA=25℃: 150mW; (8)Detector Power Dissipation Derate above 25℃: 1.67mW/℃; (9)Storage Temperature: -55℃ to +150℃; (10)Operating Temperature: -55℃ to +100℃; (11)Lead Solder Temperature: 250 for 10sec ℃; (12)Total Device Power Dissipation @ TA=25℃: 400mW; (13)Total Device Power Dissipation Derate above 25℃: 4.83mW/℃.
Features
MCT9001 features: (1) Two isolated channels per package; (2) Two packages fit into a 16 lead DIP socket; (3) Underwriters Laboratory (U.L.) recognized File E90700.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MCT9001 |
Fairchild Semiconductor |
Transistor Output Optocouplers 2-CH PHOTOTRANS DIP8 |
Data Sheet |
|
|
||||||||||||
|
MCT9001_Q |
Fairchild Semiconductor |
Transistor Output Optocouplers 2-CH PHOTOTRANS DIP8 |
Data Sheet |
Negotiable |
|
||||||||||||
|
MCT9001SD |
Fairchild Semiconductor |
Transistor Output Optocouplers 2-CH PHOTOTRANS SMD SMD DIP-8 |
Data Sheet |
|
|
||||||||||||
|
MCT9001S |
Fairchild Semiconductor |
Transistor Output Optocouplers 2-CH PHTX UNFRMD LDS SMD DIP-8 |
Data Sheet |
|
|
||||||||||||
|
MCT9001W |
Fairchild Semiconductor |
Transistor Output Optocouplers 8-Pin Optocoupler Dual Ch Phototrans |
Data Sheet |
|
|
||||||||||||
