Product Summary

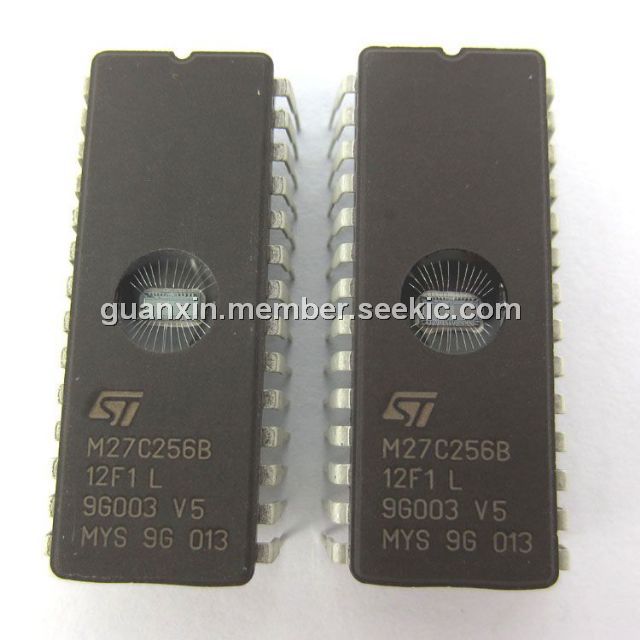

The M27C256B-12F1 is a 56Kbit EPROM offered in the two ranges UV (ultra violet erase) and OTP (one time programmable). It is ideally suited for microprocessor systems and is organized as 32,768 by 8 bits. For applications where the content is programmed only one time and erasure is not required, the M27C256B-12F1 is offered in PDIP28 and PLCC32 packages.
Parametrics
M27C256B-12F1 absolute maximum ratings: (1)TA, Ambient Operating Temperature:–40℃ to 125℃; (2)TBIAS, Temperature Under Bias: –50℃ to 125℃; (3)TSTG, Storage Temperature: –65℃ to 150℃; (4)VIO, Input or Output Voltage (except A9): –2V to 7 V; (5) VCC Supply Voltage –2V to 7 V; (6) VA9, A9 Voltage: –2V to 13.5 V; (7) VPP, Program Supply Voltage: –2V to 14 V.
Features
M27C256B-12F1 features: (1)5V ± 10% supply voltage in Read operation; (2) Access time: 45ns; (3) Low power consumption: Active Current 30mA at 5MHz; Standby Current 100μA; (4) Programming voltage: 12.75V ± 0.25V; (5) Programming time: 100μs/Word; (6) Electronic signature: Manufacturer Code: 20h; Device Code: 8Dh; (7) ECOPACK packages available.

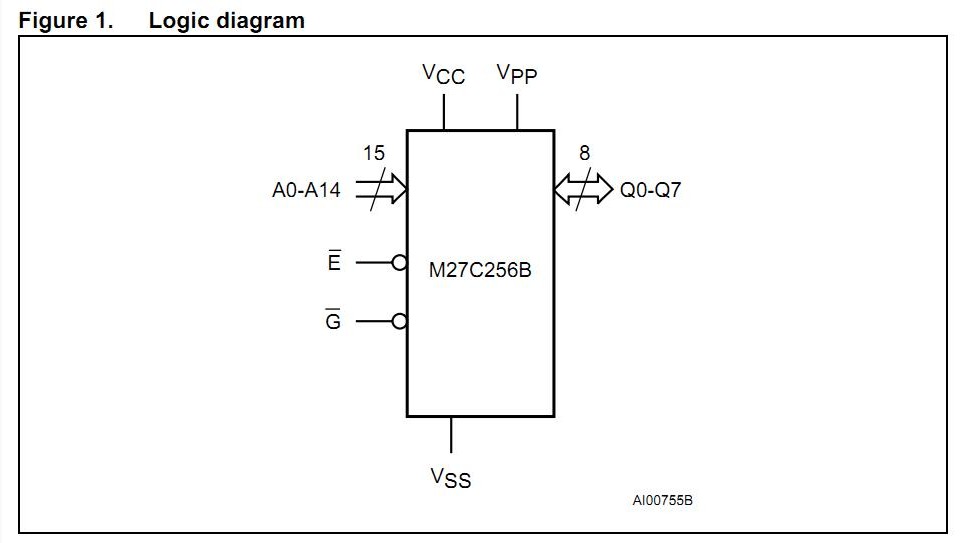

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 M27C256B-12F1 |
STMicroelectronics |
EPROM 256K (32KX8) 120ns |
Data Sheet |
Negotiable |
|
||||
