Product Summary

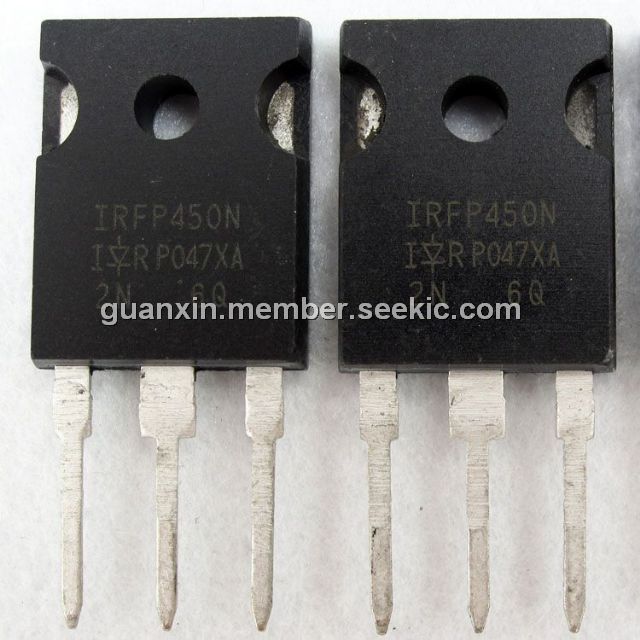

The IRFP450NPBF is a SMPS MOSFET. The applications of the IRFP450NPBF include Switch Mode Power Supply (SMPS), Uninterruptible Power Supply, High Speed Power Switching, Lead-Free.
Parametrics
IRFP450NPBF absolute maximum ratings: (1)ID @ TC = 25℃ Continuous Drain Current, VGS @ 10V: 14A; (2)ID @ TC = 100℃ Continuous Drain Current, VGS @ 10V: 8.8A; (3)Pulsed Drain Current: 56A; (4)PD @TC = 25℃ Power Dissipation: 200 W; (5)Linear Derating Factor: 1.6 W/℃; (6)Gate-to-Source Voltage: ±30 V; (7)Peak Diode Recovery dv/dt: 5.0 V/ns; (8)Operating Junction and Storage Temperature Range: -55℃ to 150℃; (9)Soldering Temperature, for 10 seconds 300℃ (1.6mm from case ).
Features
IRFP450NPBF features: (1)Low Gate Charge Qg results in Simple Drive Requirement; (2)Improved Gate, Avalanche and Dynamic dv/dt Ruggedness; (3)Fully Characterized Capacitance and Avalanche Voltage and Current; (4)Effective Coss Specified.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 IRFP450NPBF |
Vishay/Siliconix |
MOSFET N-Chan 500V 14 Amp |
Data Sheet |
Negotiable |
|
||||||||||||
