Product Summary

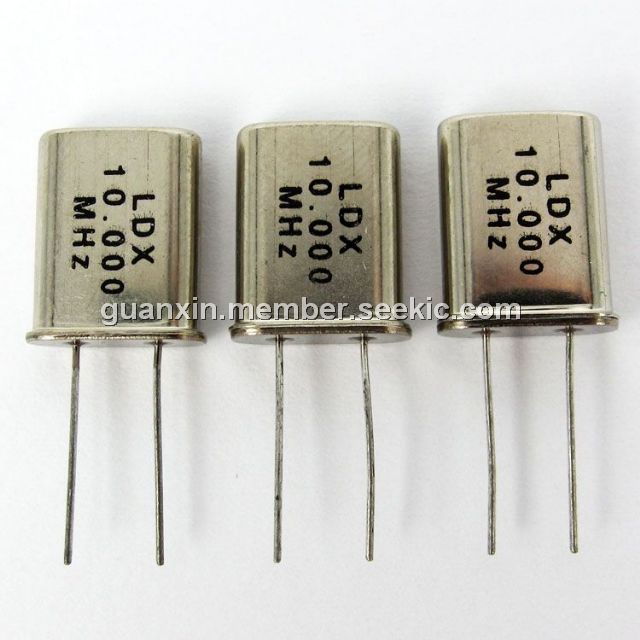

The HC49U-10.0000MH is a crystal oscillator.
Parametrics
HC49U-10.0000MH absolute maximum ratings: (1)Frequency Range: 1.8432MHz to 200MHz; (2)Tolerance @ +25℃: ±30ppm; (3)Stability: ±50ppm; (4)Aging: ±5ppm/yr. Max.; (5) Shunt Capacitance: 7pF Max.; (6) Load Capacitance: 18 pF Std.; (7) Standard Operating Conditions: -10℃ to +70℃; (8) Equivalent Series Resistance Max. : 40Ω; (9) Drive Level: 1mW Max.
Diagrams
 |
