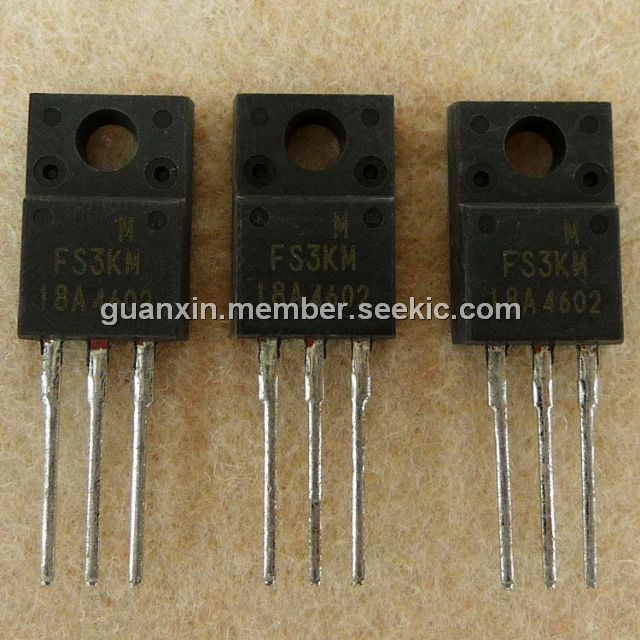

FS3KM-18A

FS3KM-18A, TO-220F, ±30V, 3A, 2g, Mitsubishi Nch power MOSFET

Rated 5 Rating 5 | reviews | Write a review

Price:: US $0.54~1.56 / piece [Get Latest Price]

Reference price:

Qty (lots)	Price/lot
	US $0.54~1.56

PartNumber:: FS3KM-18A

Brand:: MITSUBISHI Electronics - MITSUBISHI | Pack: TO | D/C: 12+

Availability:: Supply Ability: 10000/Week Can Ship Immediately
Delivery: 10-15 Business Days (ships out within 3 Business days)

Quantity:: piece

Total Price:: US $0

Place Order via Escrow Service

Sold By

Ms. Rosy's store

(Hong Kong)

add to my favourite

100% Positive feedback

Detailed seller ratings

Visit Store

Contact Now

Esrcow Service

Place orders confidently and securely via it

Safe payments
Quick and easy transactions
Free service charges

Learn More >>

Previous Next

Products Upload time: 2012-08-03

From Other Seller

Part Number:FS3KM-18A
US $0.54 - 1.56
EKXG401ELL6R8MJ16S

US $5.00 - 5.00 / Piece
(0) Remove
EKY-160ELL121MF11D

US $0.10 - 1.00 / Piece
(0) Remove
Quantity:

piece

Product Summary

The FS3KM-18A is a Mitsubishi Nch power MOSFET. The applications of the FS3KM-18A include SMPS, DC-DC Converter, battery charger, power supply of printer, copier, HDD, FDD, TV, VCR, personal computer etc.

Parametrics

FS3KM-18A absolute maximum ratings: (1)Drain-source voltage VGS=0V : 900V; (2)Gate-source voltage VDS=0V : ±30V; (3)Drain current: 3A; (4)Drain current (Pulsed): 9A; (5)Maximum power dissipation: 30W; (6)Channel temperature: -55℃ to 150℃; (7)Storage temperature: -55℃ to 150℃; (8)Isolation voltage AC for 1minute, Terminal to case: 2000Vrms; (9) Weight: 2g.

Features

FS3KM-18A features: (1)Drain-source breakdown voltage: 900V; (2)Gate-source breakdown voltage: ±30V; (3)Gate-source leakage current: ±10μA; (4)Drain-source leakage current: 1mA; (5)Gate-source threshold voltage: 2V to 4V; (6)Drain-source on-state resistance: 4Ω; (7)Drain-source on-state voltage: 6V; (8)Forward transfer admittance: 2.1S; (9)Input capacitance: 770pF; (10)Output capacitance: 77pF; (11)Reverse transfer capacitance: 13pF; (12)Turn-on delay time: 15ns; (13)Rise time: 15ns; (14)Turn-off delay time: 90ns; (15)Fall time: 25ns; (16)Source-drain voltage: 1.5V; (17)Thermal resistance: 4.17℃/W.
