Product Summary

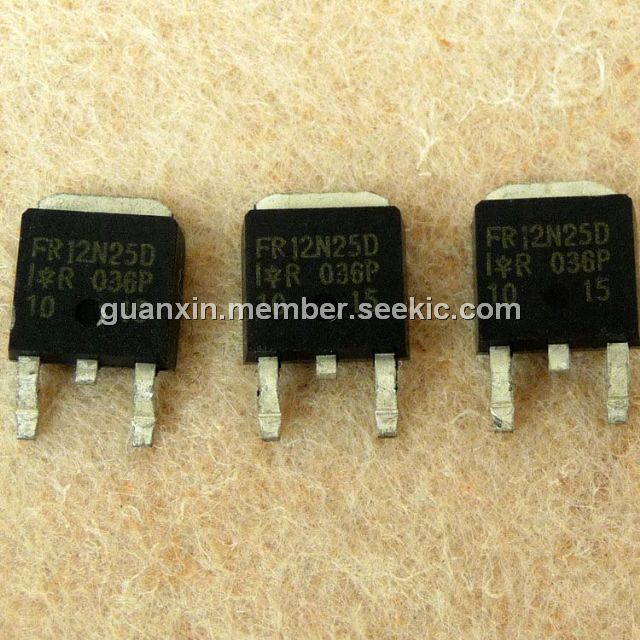

The FR12N25D is a SMPS MOSFET. The applications of the FR12N25D include High frequency DC-DC converters, Lead-Free.
Parametrics
FR12N25D absolute maximum ratings: (1)ID @ TC = 25℃ Continuous Drain Current, VGS @ 10V: 14A; (2)ID @ TC = 100℃ Continuous Drain Current, VGS @ 10V: 9.7A; (3)Pulsed Drain Current: 56W; (4)PD @TC = 25℃ Power Dissipation: 144W; (5)Linear Derating Factor: 0.96 W/℃; (6)Gate-to-Source Voltage: ±30V; (7)Peak Diode Recovery dv/dt: 9.3V/ns; (8)Operating Junction and Storage Temperature Range: -55℃ to +175℃; (9)Soldering Temperature, for 10 seconds 300℃ (1.6mm from case ).
Features
FR12N25D features: (1) Low Gate-to-Drain Charge to Reduce Switching Losses; (2) Fully Characterized Capacitance Including Effective COSS to Simplify Design; (3) Fully Characterized Avalanche Voltage and Current.

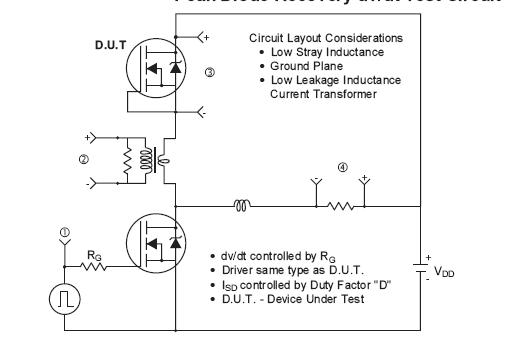

Diagrams
 |
