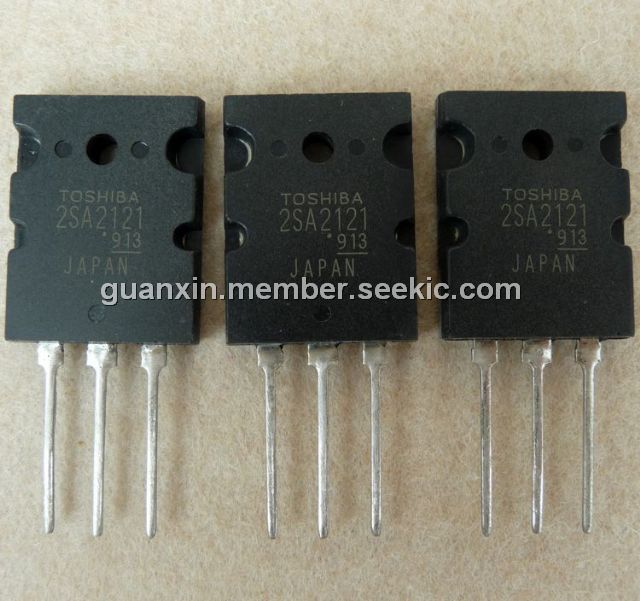

Product Summary

The 2SA2121 is a silicon PNP triple diffused type transistor.

Parametrics

2SA2121 absolute maximum ratings: (1)Collector-base voltage: -200V; (2)Collector-emitter voltage: -200 V; (3)Emitter-base voltage: -5 V; (4)Collector current: -15 A; (5)Base current: -1.5 A; (6)Collector power dissipation: 220 W; (7)Junction temperature: 150℃; (8)Storage temperature range: -55℃ to 150℃.

Features

2SA2121 features: (1) Complementary to 2SC5949; (2) Recommended for audio frequency amplifier output stage.

Diagrams

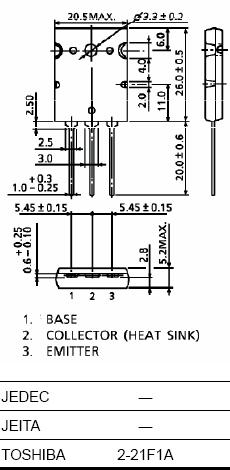

2SA2121 Dimmension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
2SA2121-O(Q)
2SA2121-O(Q)
Toshiba
Transistors Bipolar (BJT) PNP 200V 15A
Data Sheet
0-1: $1.82
1-10: $1.46
10-100: $1.15
100-250: $1.10
2SA2121-R(Q)
2SA2121-R(Q)
Toshiba
Transistors Bipolar (BJT) Transistor PNP 200V 15A
Data Sheet
0-1: $1.82
1-10: $1.46
10-100: $1.15
100-250: $1.10
