The T118 is a Phase Control Thyristor.
Parametrics
T118 absolute maximum ratings: (1)repetitive peak forward off-state and reverse voltages:1200, 1400, 1600, 1800V; (2)non-repetitive peak forward off-state voltage:1200, 1400, 1600, 1800V; (3)non-repetitive peak reverse voltage:1300, 1500, 1700, 1900V; (4)RMS on-state current:2800A; (5)average on-state current:1190A, 1800A; (6)surge current:25500A, 22500A; (7)critical rate of rise of on-state current:200A/us; (8)critical rate of rise of off-state voltage:1000V/us.
Features
T118 features: (1)on-state voltage:max.2.05V; (2)threshold voltage:0.9V; (3)slope resistance:0.19mΩ; (4)gate trigger current:max.250mA; (5)gate trigger voltage:max.2V; (6)gate non-trigger current:max.200mA, max.10mA; (7)gate non-trigger voltage:max.0.2V; (8)holding current:max.500mA; (9)latching current:max.2500mA; (10)forward off-state and reverse currents:max.150mA; (11)gate controlled delay time:max.4us; (12)circuit commutated turn-off time:typ.240us.

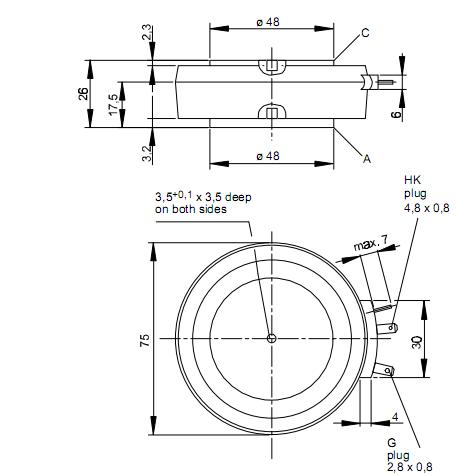

Diagrams
