Product Summary

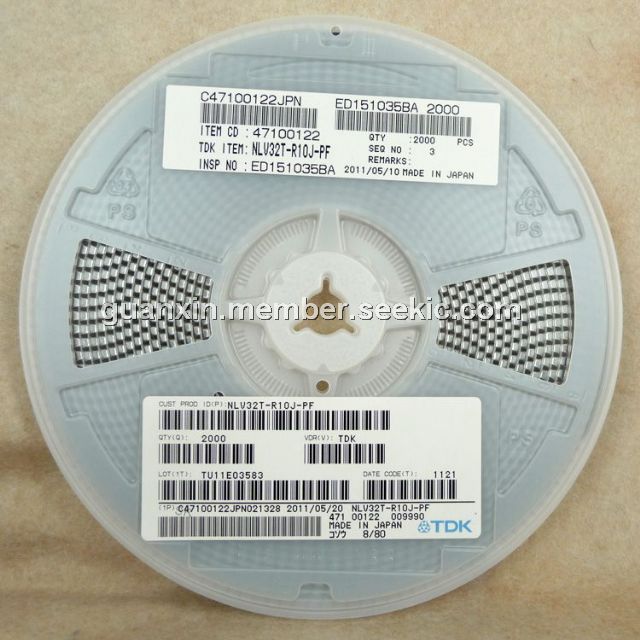

The NLV32T-R10J-PF is a Common Mode Inductor. The applications of the NLV32T-R10J-PF include PCs, hard disk drives, and other types of electronics.
Parametrics
NLV32T-R10J-PF absolute maximum ratings: (1)Operating temperature range: –40℃ to +85℃; (2)Storage temperature range: –40℃ to +85℃ (Unit of products).
Features
NLV32T-R10J-PF features: (1)The product has good heat durability that withstands lead free compatible reflow soldering conditions.; (2)Lead-free material is used for the plating on the terminal.; (3)The electrical characteristics, reliability, shape and pad shape; (4)are the same as the previous NL series.; (5)The product uses metal terminals, which realize excellent connection reliability.; (6)Highly heat resistant thermoplastic resin is used to form the; (7)exterior package.; (8)From 0.01μH to 470μH, all of the products in the E-12 series are J(±5%) tolerance products.; (9)This product conforms to the RoHS standard.
Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 NLV32T-R10J-PF |
TDK |
Common Mode Inductors (Chokes) 0.1uH 5% |
Data Sheet |
|
|
||||||||||||||
| Image | Part No | Mfg | Description | |
Pricing (USD) |
Quantity | ||||||||||||||
|
NLV32T-010J-PF |
TDK |
Common Mode Inductors (Chokes) 0.01uH 5% |
Data Sheet |
|
|
||||||||||||||
|
NLV32T-012J-PF |
TDK |
Common Mode Inductors (Chokes) 12uH |
Data Sheet |
|
|
||||||||||||||
|
NLV32T-015J-PF |
TDK |
Common Mode Inductors (Chokes) 0.015uH 5% |
Data Sheet |
|
|
||||||||||||||
|
NLV32T-018J-PF |
TDK |
Common Mode Inductors (Chokes) 18nH 5% |
Data Sheet |
|
|
||||||||||||||
|
NLV32T-022J-PF |
TDK |
Common Mode Inductors (Chokes) 0.022uH 5% |
Data Sheet |
|
|
||||||||||||||
|
NLV32T-027J-PF |
TDK |
Common Mode Inductors (Chokes) 27 NH 5% |
Data Sheet |
|
|
||||||||||||||
