Product Summary
The MJ15025 is a silicon PNP power transistor. The applications of the MJ15025 include designed for high power audio, disk head positioners and other linear applications.
Parametrics
MJ15025 absolute maximum ratings: (1)VEBO Emitter-base voltage Open collector: -5V; (2)IC Collector current: -16A; (3)ICM Collector current-peak: -30A; (4)IB Base current: -5 A; (5)PD Total power dissipation TC=25: 250W; (6)Tj Junction temperature: 150℃; (7)Tstg Storage temperature: -65℃ to 200℃.
Features
MJ15025 features: (1) With TO-3 package; (2) Complement to type; (3) Excellent safe operating area; (4) High DC current gain hFE = 15 (Min) @ IC = 8Adc.

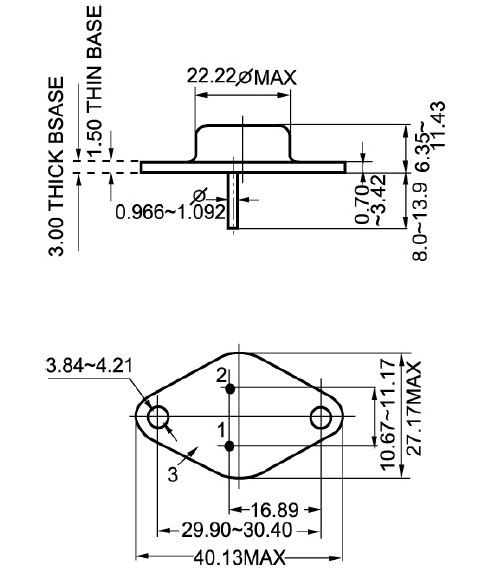

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 MJ15025 |
ON Semiconductor |
Transistors Bipolar (BJT) 16A 250V 250W PNP |
Data Sheet |
Negotiable |
|
||||||||||||
|
MJ15025G |
ON Semiconductor |
Transistors Bipolar (BJT) 16A 250V 250W PNP |
Data Sheet |
|
|
||||||||||||
