Product Summary

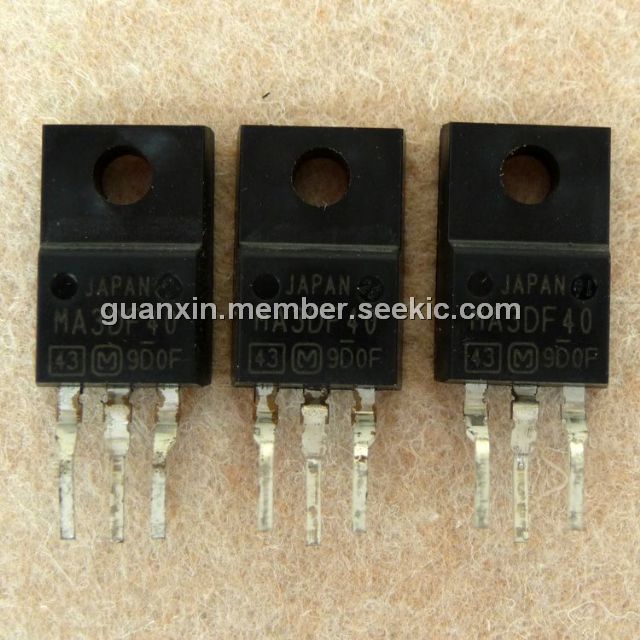

The MA3DF40 is a fast recovery diode.

Parametrics

MA3DF40 absolute maximum ratings: (1)Repetitive peak reverse voltage: 370V; (2)Non-repetitive peak reverse surge voltage: 430V; (3)Forward current TC = 25℃: 20A; (4)Non-repetitive peak forward surge current: 100A; (5)Junction temperature:–40℃ to +150℃; (6)Storage temperature:–40℃ to +150℃.

Features

MA3DF40 features: (1) High switching speed trr; (2) Soft recovery.

Diagrams

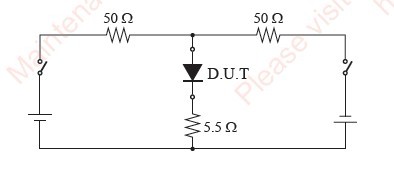

MA3DF40 block diagram
