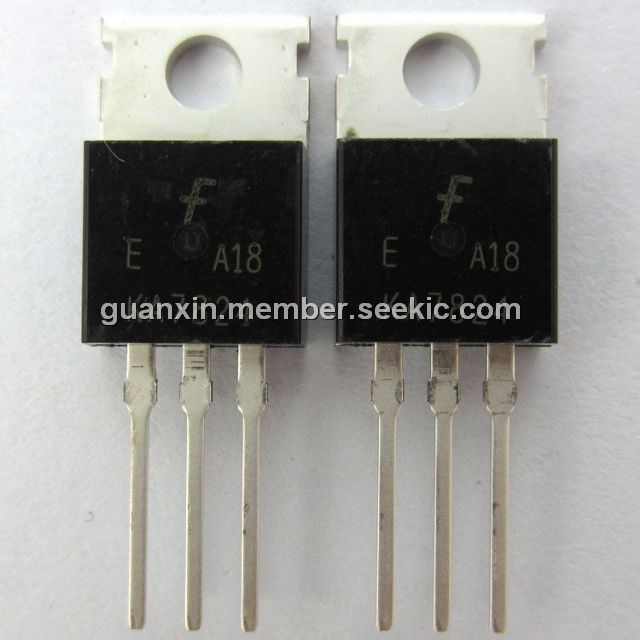

The L7824CV is a positive voltage regulator. The L7824CV is available in TO-220, TO-220FP, TO-220FM, TO-3 and D2PAK packages and several fixed output voltages, making it useful in a wide range of applications. The L7824CV can provide local on-card regulation, eliminating the distribution problems associated with single point regulation. Each type employs internal current limiting, thermal shut-down and safe area protection, making it essentially indestructible. If adequate heat sinking is provided, they can deliver over 1A output current. Although designed primarily as fixed voltage regulators, The L7824CV can be used with external components to obtain adjustable voltage and currents.
Parametrics
L7824CV absolute maximum ratings: (1)DC Input Voltage (for VO = 5V to 18V): 35V; (2)DC Input Voltage (for VO = 20V, 24V): 40V; (3)Output Current: Internally limited; (4)Power Dissipation: Internally limited; (5)Operating Junction Temperature Range: 0℃ to 150℃; (6)Storage Temperature Range: -65℃ to 150℃.
Features
L7824CV features: (1)output current TO 1.5A; (2)OUTPUT VOLTAGES OF 5; 5.2; 6; 8; 8.5; 9; 10; 12; 15; 18; 24V; (3)thermal overload protection; (4)short circuit protection; (5)output transition SOA protection.

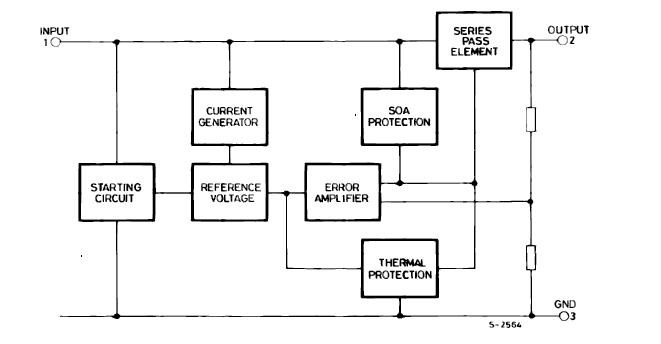

Diagrams
