Product Summary

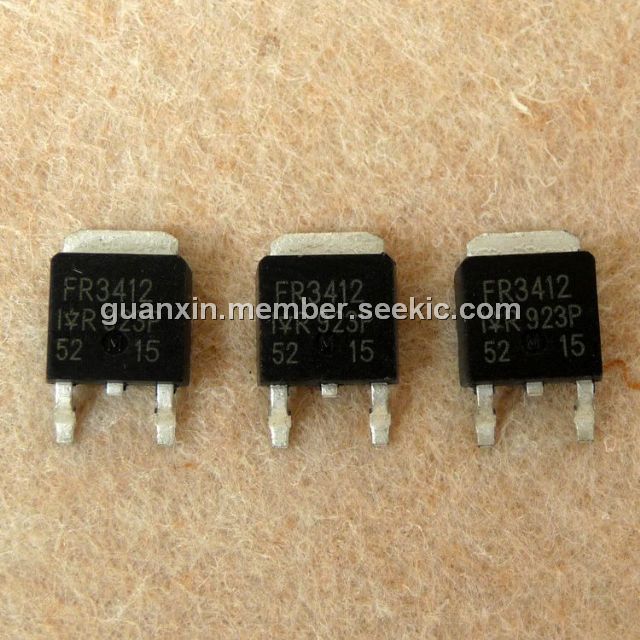

The IRFR3412 is a 100V SMPS MOSFET. The applications of the IRFR3412 are Switch Mode Power Supply (SMPS), Motor Drive, Bridge Converters, All Zero Voltage Switching, Lead-Free.
Parametrics
IRFR3412 absolute maximum ratings: (1)Continuous Drain Current, VGS @ 10V:48A; (2)Continuous Drain Current, VGS @ 10V:34A; (3)Pulsed Drain Current:190A; (4)Power Dissipation:140W; (5)Linear Derating Factor:0.95W/℃; (6)Gate-to-Source Voltage:±20V; (7)Peak Diode Recovery dv/dt:6.4V/ns; (8)Operating Junction and Storage Temperature Range:-55 to + 175℃; (9)Soldering Temperature, for 10 second 300(1.6mm from case ):300℃.
Features
IRFR3412 features: (1)Low Gate Charge Qg results in Simple Drive Requirement; (2)Improved Gate, Avalanche and Dynamic dv/dt Ruggedness; (3)Fully Characterized Capacitance and Avalanche Voltage and Current; (4)Enhanced Body Diode dv/dt Capability.
Diagrams
<IMG border=0 alt="IRFR3412 block diagram" src="http://www.seekic.com/uploadfile/ic-mfg/2012102615655711.jpg">
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||
|---|---|---|---|---|---|---|---|---|---|---|
 |
 IRFR3412 |
Other |
|
Data Sheet |
Negotiable |
|
||||
 |
IRFR3412PBF |
|
MOSFET N-CH 100V 48A DPAK |
Data Sheet |
Negotiable |
|
||||
|
IRFR3412TRLPBF |
|
MOSFET N-CH 100V 48A DPAK |
Data Sheet |
Negotiable |
|
||||
|
IRFR3412TRPBF |
|
MOSFET N-CH 100V 48A DPAK |
Data Sheet |
Negotiable |
|
||||
|
IRFR3412TRRPBF |
|
MOSFET N-CH 100V 48A DPAK |
Data Sheet |
Negotiable |
|
||||
