Product Summary

The EE-SX301 is a Photo micro sensor.

Parametrics

EE-SX301 absolute maximum ratings: (1)Emitter Forward current: 50mA; (2)Emitter Reverse voltage: 4V; (3)Power supply voltage VCC: 16V; (4)Output voltage VOUT: 28V; (5)Output current IOUT: 16mA; (6)Permissible output dissipation: 250mW; (7)Operating Temperature: -40℃ to 75℃; (8)Storage Temperature: -40℃ to 85℃; (9)Soldering temperature: 260℃.

Features

EE-SX301 features: (1)Incorporates an IC chip with a built-in detector element and amplifier; (2)Incorporates a detector element with a built-in temperature compensation circuit.; (3)A wide supply voltage range: 4.5 to 16 VDC; (4)Directly connects with C-MOS and TTL.; (5)High resolution with a 0.5-mm-wide sensing aperture.; (6)Dark ON model (EE-SX301).

Diagrams

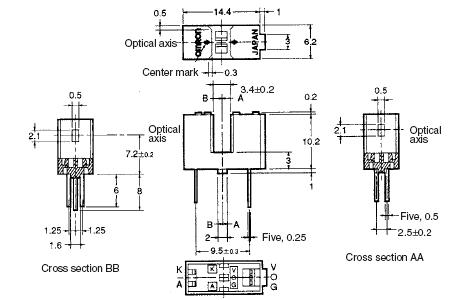

EE-SX301 Dimmension

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity

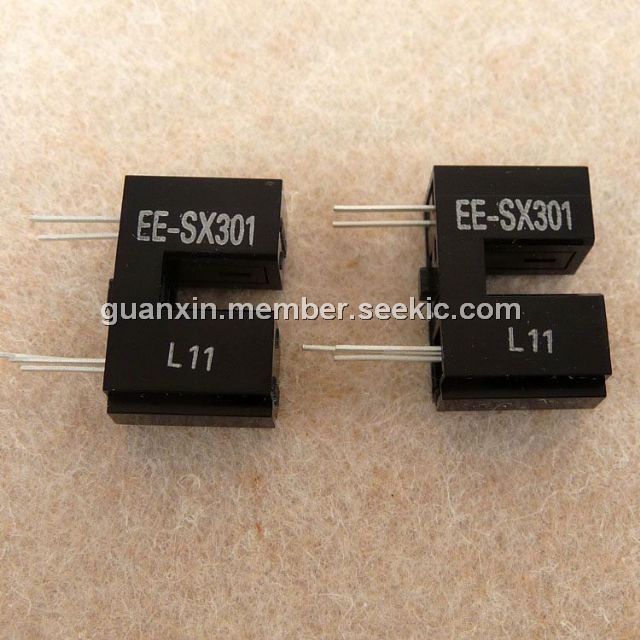

EE-SX301
EE-SX301
Omron Electronics
Optical Switches, Transmissive, with Photo IC Output PHOTO IC DARK-ON NC/NR
Data Sheet
0-1: $3.16
1-25: $3.02
25-50: $2.86
50-100: $2.55
