Product Summary

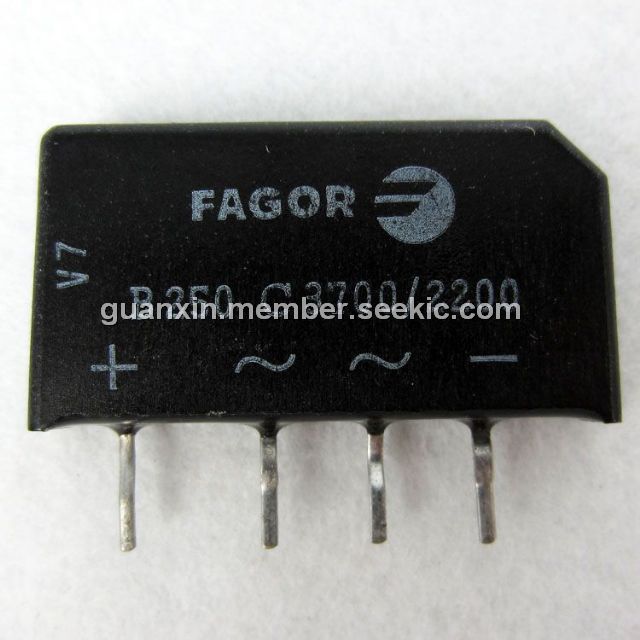

The B250C3700/2200 is a 3.7A bridge rectifier.
Parametrics
B250C3700/2200 absolute maximum ratings: (1)Peak Repetitive Reverse Voltage: 600V; (2)Working Peak Reverse Voltage: 600V; (3)DC Blocking Voltage: 600V; (4)Recommend Input Voltage: 250V; (5)Average Rectified Output Current @TA = 45℃: 3.7A; (6)Non-Repetitive Peak Forward Surge Current 8.3ms Single half sine-wave superimposed on rated load (JEDEC Method): 100A; (7)Repetitive Peak Forward Surge Current: 15 A; (8)Forward Voltage (per element) @IF = 3.0A: 1.0 V; (9)Peak Reverse Current @TC = 25℃: 10μA; (10)At Rated DC Blocking Voltage @TC = 150℃: 6.0mA; (11)Rating for Fusing (t＜8.3ms): 50 A2s; (12)Typical Thermal Resistance: 3.0K/W; (13)Operating and Storage Temperature Range: -55℃ to +150℃.
Features
B250C3700/2200 features: (1) Diffused Junction; (2) Low Forward Voltage Drop; (3) High Current Capability; (4) High Reliability; (5) High Surge Current Capability; (6) Ideal for Printed Circuit Boards.
Diagrams
 |
