Product Summary
The RC0603JR-074K7L is a thick film resistor. This specification describes the RC0603JR-074K7L with lead-free terminations made by thick film process.
Parametrics
RC0603JR-074K7L absolute maximum ratings: (1)Operating Temperature Range: –55℃ to +155℃; (2)Maximum Working Voltage: 50V; (3)Maximum Overload Voltage: 100V; (4)Dielectric Withstanding Voltage: 100V; (5)Resistance Range: 1% (E96) 1Ω to 10MΩ, 5% (E24) 1Ω to 22MΩ, Zero Ohm Jumper＜0.05 Ω; (6)Temperature Coefficient: 10Ω＜R≤10MΩ ±100ppm/℃, R≤10Ω; R＞10MΩ ±200ppm/℃; (7)Jumper Criteria: Rated Current: 1.0A, Maximum Current: 2.0A.
Features
RC0603JR-074K7L features: (1) tolerance: ±5%; (2) packaging type: R = Paper/PE taping reel; (3) taping reel: 7 inch dia. Reel; (4) resistor terminations: Lead free terminations (pure Tin).

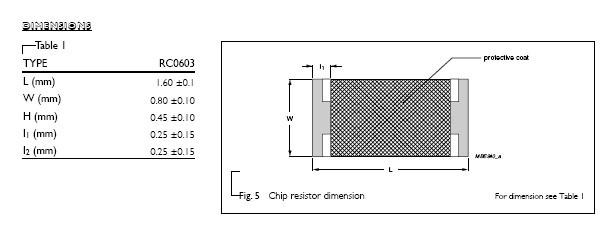

Diagrams
| Image | Part No | Mfg | Description |  |
Pricing (USD) |
Quantity | ||||||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 |
 RC0603JR-074K7L |
Yageo |
Thick Film Resistors - SMD 4.7K OHM 5% |
Data Sheet |
|
|
||||||||||||||
