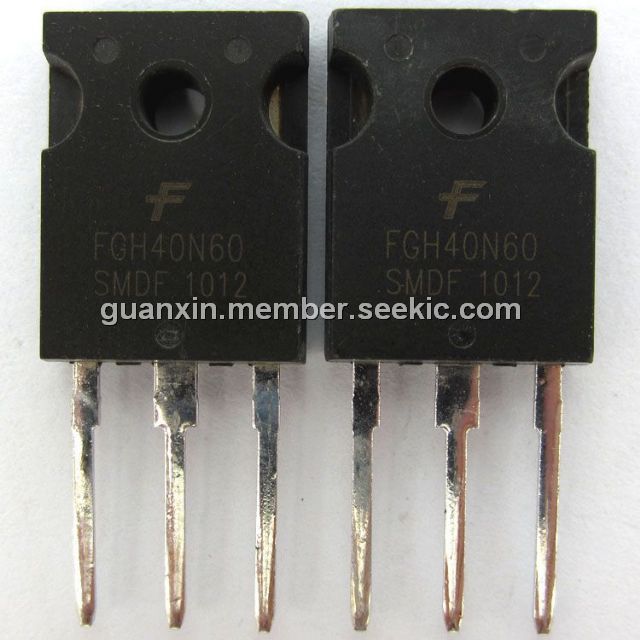

Product Summary

The FGH40N60SMDF is a 600V, 40A Field Stop IGBT. Using Novel Field Stop IGBT Technology, Fairchild’s new series of Field Stop IGBTs offer the optimum performance for Solar Inverter, UPS, SMPS, IH and PFC applications where low conduction and switching losses are essential. The applications of the FGH40N60SMDF include Solar Inverter, UPS, SMPS, PFC, induction heating.

Parametrics

FGH40N60SMDF absolute maximum ratings: (1)Collector to Emitter Voltage: 600V; (2)Gate to Emitter Voltage: ±20V; (3)Collector Current @ TC = 25℃: 80A; (4)Collector Current @ TC = 100℃: 40A; (5)Pulsed Collector Current: 120A; (6)Diode Forward Current @ TC = 25℃: 40A; (7)Diode Forward Current @ TC = 100℃: 20A; (8)Pulsed Diode Maximum Forward Current: 120A; (9)Maximum Power Dissipation @ TC = 25℃: 349W; (10)Maximum Power Dissipation @ TC = 100℃: 174W; (11)Operating Junction Temperature: -55℃ to +175℃; (12)Storage Temperature Range: -55℃ to +175℃; (13) Maximum Lead Temp. for soldering Purposes, 1/8" from case for 5 seconds: 300℃.

Features

FGH40N60SMDF features: (1)Maximum Junction Temperature : TJ =175℃; (2)Positive temperature Co-efficient for easy parallel operating; (3) High current capability; (4) Low saturation voltage: VCE (sat) = 1.9V (Typ.) @ IC = 40A; (5) High input impedance; (6) Fast switching; (7) Tighten Parameter Distribution; (8) RoHS compliant.

Diagrams

FGH40N60SMDF block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
FGH40N60SMDF
FGH40N60SMDF
Fairchild Semiconductor
IGBT Transistors 600V/40A Field Stop IGBT ver. 2
Data Sheet
0-1: $2.47
1-25: $2.23
25-100: $2.03
100-250: $1.83
