Product Summary

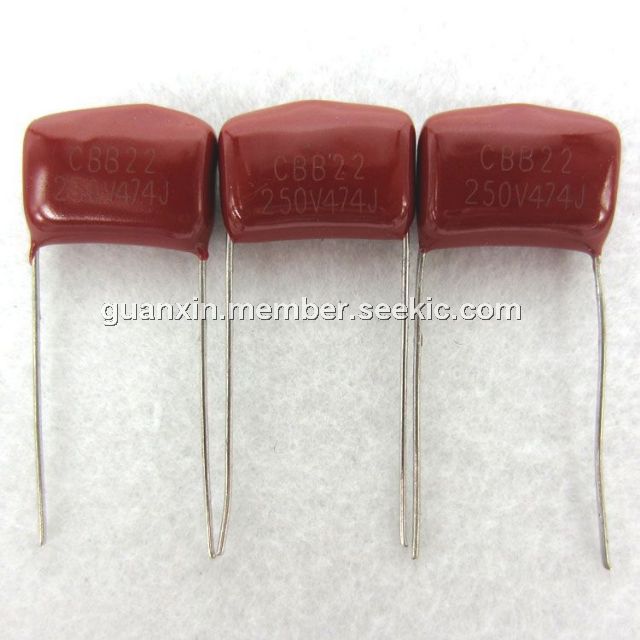

The CBB22 is a Metallized Polypropylene Film Capacitor. The applications of the CBB22 include General resonance circuit, High frequency circuit, TV horizontal deflection (S correction), Active filtering, and timing and oscillator circuits.
Parametrics
CBB22 absolute maximum ratings: (1)Category temperature range: -40℃ to 100℃; (2)Rated voltage: 250VDC, 400VDC, 630VDC, 1000VDC; (3)Capacitance range: 0.001mF to 10mF (at: 20℃, 1KHZ); (4)Capacitance tolerance: J (±5%), K (±10%), M(±20%); (5)Dissipation factor: CR≤1μF: 0.3% max (20℃/10KHZ), CR＞1μF: 0.1% max (20℃/1KHZ); (6)Withstand voltage: 1.7VR 2s.
Features
CBB22 features: (1) Low DF and high IR. and high IR; (2) Excellent frequency, temperature characteristics.
Diagrams
