Product Summary

The BCX53 is a PNP Silicon AF Transistor.

Parametrics

BCX53 absolute maximum ratings: (1)Collector-emitter voltage VCEO: 80V; (2)Collector-base voltage VCBO: 100V; (3)Emitter-base voltage VEBO: 5V; (4)DC collector current IC: 1A; (5)Peak collector current ICM: 1.5A; (6)Base current IB: 100mA; (7)Peak base current IBM: 200mA; (8)Total power dissipation, TS = 130℃: 1W; (9)Junction temperature Tj: 150℃; (10)Storage temperature Tstg: -65℃ to 150℃.

Features

BCX53 features: (1)For AF driver and output stages; (2)High collector current; (3)Low collector-emitter saturation voltage; (4)Complementary types: BCX54, BCX56 (NPN).

Diagrams

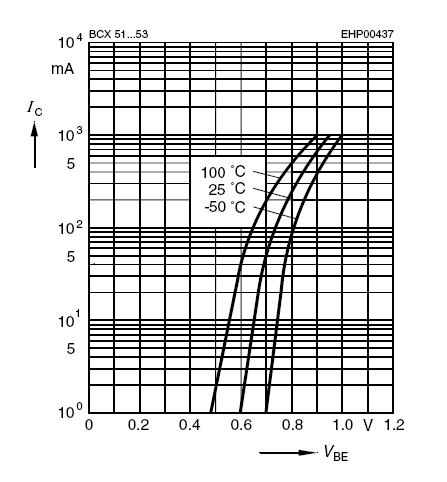

BCX53 graph

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
BCX53
BCX53
Other

Data Sheet
Negotiable
BCX53,115
BCX53,115
NXP Semiconductors
Transistors Bipolar (BJT) TRANS MED PWR TAPE-7
Data Sheet
0-1: $0.25
1-25: $0.20
25-100: $0.16
100-250: $0.12
BCX53,146
BCX53,146
NXP Semiconductors
Transistors Bipolar (BJT) Trans GP BJT PNP 80V 1A 4-Pin(3+Tab)
Data Sheet
0-1: $0.25
1-25: $0.20
25-100: $0.16
100-250: $0.12
