Product Summary

The 1N5819 is a 1A Schottky Rectifier.

Parametrics

1N5819 absolute maximum ratings: (1)Average Rectified Current:1.0A; (2)Non-repetitive Peak Forward Surge Current:25A; (3)Total Device Dissipation:1.25W; (4)Thermal Resistance, Junction to Ambient:80℃/W; (5)Storage Temperature Range:-65 to 125℃; (6)Operating Junction Temperature:-65 to 125℃.

Features

1N5819 features: (1)1.0 ampere operation at TA = 90℃ with no thermal runaway; (2)For use in low voltage, high frequency inverters free wheeling, and polarity protection applications.

Diagrams

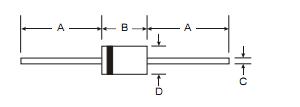

1N5819 block diagram

Image Part No Mfg Description Data Sheet Download Pricing
(USD)		 Quantity
1N5819-TP
1N5819-TP
Micro Commercial Components (MCC)
Schottky (Diodes & Rectifiers) 1.0A 40V
Data Sheet
0-1: $0.23
1-100: $0.11
100-500: $0.06
500-1000: $0.05
1N5819M-13
1N5819M-13

DIODE SCHOTTKY 40V 1A SMD MELF
Data Sheet
Negotiable
1N5819TR
1N5819TR

DIODE SCHOTTKY 1A 40V DO41
Data Sheet
0-1: $0.31
1-10: $0.25
10-25: $0.22
25-100: $0.19
100-250: $0.16
250-500: $0.14
500-1000: $0.11
1000-2500: $0.10
1N5819-E3/3
1N5819-E3/3
Vishay Semiconductors
Schottky (Diodes & Rectifiers) Vr/40V Io/1A
Data Sheet
Negotiable
1N5819-E3/23
1N5819-E3/23
Vishay Semiconductors
Schottky (Diodes & Rectifiers) Vr/40V Io/1A
Data Sheet
Negotiable
1N5819-E3/1
1N5819-E3/1
Vishay Semiconductors
Schottky (Diodes & Rectifiers) 40 Volt 1.0 Amp 25 Amp IFSM
Data Sheet
Negotiable
1N5819-B
1N5819-B
Rectron
Schottky (Diodes & Rectifiers) Vr/40V Io/1A BULK
Data Sheet
0-1000: $0.08
1000-2000: $0.07
2000-5000: $0.06
5000-10000: $0.05
1N5819/54
1N5819/54

RECTIFIER SCHOTTKY 1A 40V DO-41
Data Sheet
Negotiable
