Product Summary

The 1N4744 is a Silicon Power Z–Diode. The applications of the 1N4744 include Voltage stabilization.

Parametrics

1N4744 absolute maximum ratings: (1)Power dissipation Tamb≤50℃: 1W; (2)Z–current: PV/VZ mA; (3)Junction temperature Tj: 200℃; (4)Storage temperature range Tstg: –65℃ to +200℃

Features

1N4744 features: (1) Very sharp reverse characteristic; (2) Very high stability; (3) Low reverse current level; (4) VZ–tolerance ±5%.

Diagrams

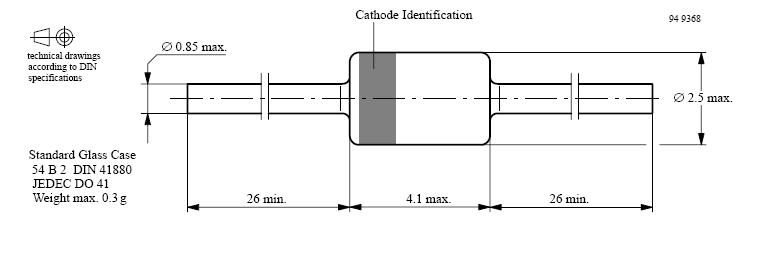

1N4744 dimmension
